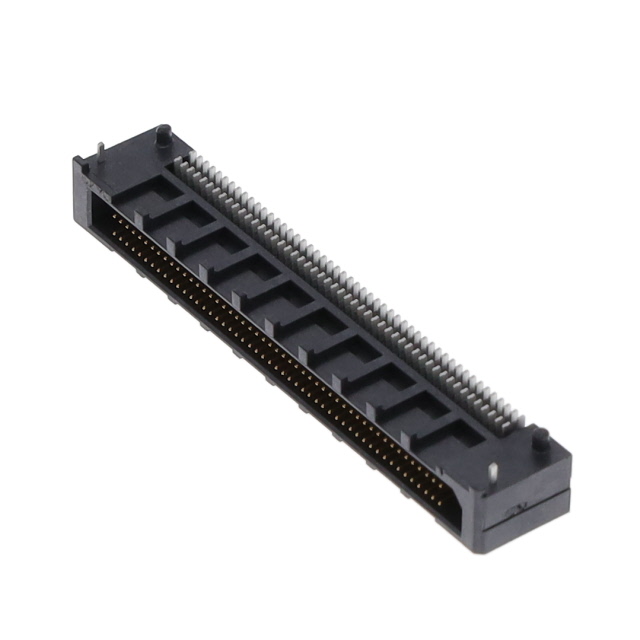

TEM-150-02-DH1-S-D-A Samtec Inc.
Виробник: Samtec Inc.
Description: .8MM TIGER EYE MICRO TERMINAL
Contact Length - Mating: 0.116" (2.95mm)
Row Spacing - Mating: 0.063" (1.60mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.236" (6.00mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.031" (0.80mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board
Number of Rows: 2
Number of Positions: 100
Mounting Type: Surface Mount, Right Angle
Current Rating (Amps): 2.9A per Contact
Connector Type: Header
Features: Board Guide
Packaging: Tray
| Кількість | Ціна |
|---|---|
| 1+ | 1587.07 грн |
| 10+ | 1446.16 грн |
| 25+ | 1392.44 грн |
| 50+ | 1274.70 грн |
| 100+ | 1055.89 грн |
Відгуки про товар
Написати відгук
Технічний опис TEM-150-02-DH1-S-D-A Samtec Inc.
Description: .8MM TIGER EYE MICRO TERMINAL, Contact Length - Mating: 0.116" (2.95mm), Row Spacing - Mating: 0.063" (1.60mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.236" (6.00mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.031" (0.80mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board, Number of Rows: 2, Number of Positions: 100, Mounting Type: Surface Mount, Right Angle, Current Rating (Amps): 2.9A per Contact, Connector Type: Header, Features: Board Guide, Packaging: Tray.
