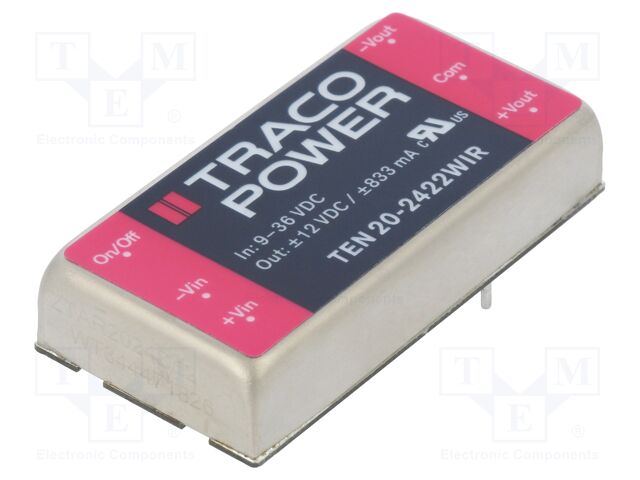

TEN 20-2422WIR Traco Power

Description: DC DC CONVERTER +/-12V 20W, Voltage - Isolation: 2.25 kV, Number of Outputs: 2, Power (Watts): 20 W, Voltage - Output 2: -12V, Voltage - Output 1: 12V, Voltage - Input (Min): 9V, Current - Output (Max): 833mA, 833mA, Efficiency: 88%, Voltage - Input (Max): 36V, Applications: ITE (Commercial), Railway, Operating Temperature: -40°C ~ 85°C (With Derating), Type: Isolated Module, Mounting Type: Through Hole, Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm), Package / Case: 6-DIP Module, Features: Remote On/Off, OCP, OVP, SCP, Packaging: Tube.
