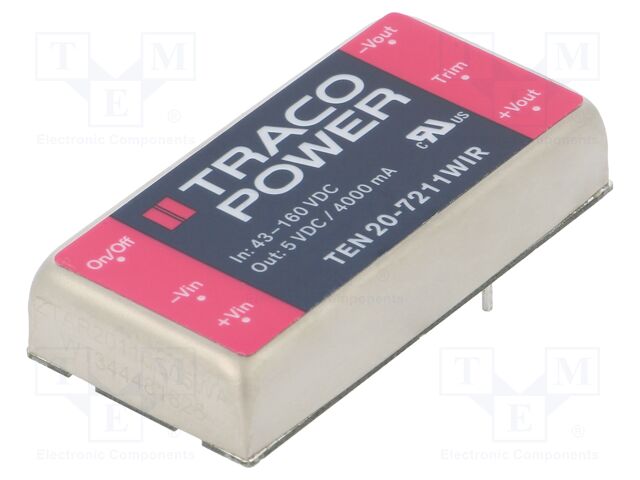

TEN 20-7211WIR TRACO POWER
Виробник: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 20W; Uin: 43÷160VDC; Uout: 5VDC; Iout: 4000mA; THT
Output voltage: 5V DC
Power: 20W
Body dimensions: 50.8x25.4x10.2mm
Application: railway industry
Operating temperature: -40...85°C
Number of outputs: 1
Dimensions: 2"x1"
Output current: 4A
Input voltage: 43...160V DC
Efficiency: 87%
Insulation voltage: 2.25kV
Switching frequency: 330kHz
Type of converter: DC/DC
Manufacturer series: TEN 20WIR
Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP
Conform to the norm: EN 50155
Mounting: THT
Відгуки про товар
Написати відгук
Технічний опис TEN 20-7211WIR TRACO POWER
Category: DC/DC Converters, Description: Converter: DC/DC; 20W; Uin: 43÷160VDC; Uout: 5VDC; Iout: 4000mA; THT, Output voltage: 5V DC, Power: 20W, Body dimensions: 50.8x25.4x10.2mm, Application: railway industry, Operating temperature: -40...85°C, Number of outputs: 1, Dimensions: 2"x1", Output current: 4A, Input voltage: 43...160V DC, Efficiency: 87%, Insulation voltage: 2.25kV, Switching frequency: 330kHz, Type of converter: DC/DC, Manufacturer series: TEN 20WIR, Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP, Conform to the norm: EN 50155, Mounting: THT.
Інші пропозиції TEN 20-7211WIR за ціною від 4681.89 грн до 7452.35 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TEN 20-7211WIR | Traco Power |
Description: DC DC CONVERTER 5V 20W Number of Outputs: 1 Power (Watts): 20 W Part Status: Active Voltage - Output 1: 5V Voltage - Input (Min): 43V Current - Output (Max): 4A Efficiency: 87% Voltage - Input (Max): 160V Applications: ITE (Commercial), Railway Operating Temperature: -40°C ~ 85°C (With Derating) Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) Package / Case: 6-DIP Module Features: Remote On/Off, OCP, OVP, SCP Voltage - Isolation: 2.25 kV Packaging: Tube |
на замовлення 7 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
TEN 20-7211WIR | TRACO Power |
Isolated DC/DC Converters - Through Hole 20W DC/DC Converter isolated, regulated in a PCB Mount Metal Case |
на замовлення 77 шт: термін постачання 21-30 дні (днів) |
|
| TEN 20-7211WIR |
|
Виробник: Traco Power
Description: DC DC CONVERTER 5V 20W
Number of Outputs: 1
Power (Watts): 20 W
Part Status: Active
Voltage - Output 1: 5V
Voltage - Input (Min): 43V
Current - Output (Max): 4A
Efficiency: 87%
Voltage - Input (Max): 160V
Applications: ITE (Commercial), Railway
Operating Temperature: -40°C ~ 85°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Package / Case: 6-DIP Module
Features: Remote On/Off, OCP, OVP, SCP
Voltage - Isolation: 2.25 kV
Packaging: Tube
Description: DC DC CONVERTER 5V 20W
Number of Outputs: 1
Power (Watts): 20 W
Part Status: Active
Voltage - Output 1: 5V
Voltage - Input (Min): 43V
Current - Output (Max): 4A
Efficiency: 87%
Voltage - Input (Max): 160V
Applications: ITE (Commercial), Railway
Operating Temperature: -40°C ~ 85°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Package / Case: 6-DIP Module
Features: Remote On/Off, OCP, OVP, SCP
Voltage - Isolation: 2.25 kV
Packaging: Tube
на замовлення 7 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 6650.31 грн |
| TEN 20-7211WIR |
|
Виробник: TRACO Power
Isolated DC/DC Converters - Through Hole 20W DC/DC Converter isolated, regulated in a PCB Mount Metal Case
Isolated DC/DC Converters - Through Hole 20W DC/DC Converter isolated, regulated in a PCB Mount Metal Case
на замовлення 77 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 7452.35 грн |
| 10+ | 6337.64 грн |
| 20+ | 4977.36 грн |
| 50+ | 4728.84 грн |
| 100+ | 4681.89 грн |
