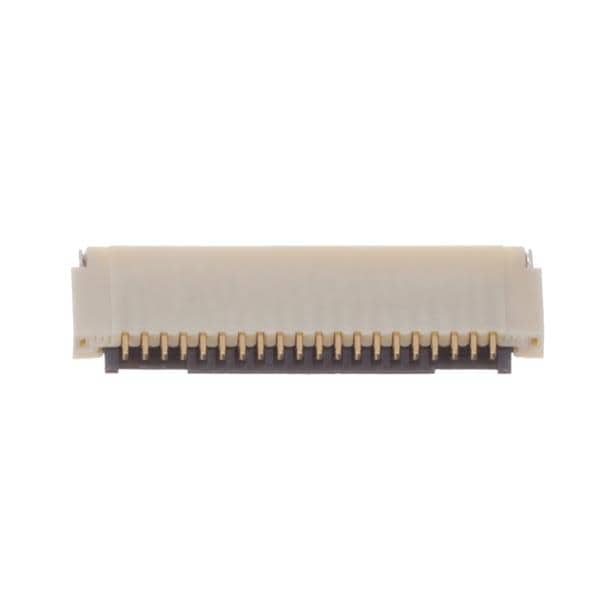

TF12S-20S-0.5SH(800) Hirose Electric Co Ltd
Виробник: Hirose Electric Co Ltd
Description: CONN FPC BOTTOM 20POS 0.5MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Tape & Reel (TR)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 20
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 85°C
Termination: Solder
Height Above Board: 0.039" (1.00mm)
Locking Feature: Flip Lock, Backlock
Material Flammability Rating: UL94 V-0
Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.20mm
Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type: Notched
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Bottom
| Кількість | Ціна без ПДВ |
|---|---|
| 5000+ | 52.04 грн |
Товар під замовлення
Немає на нашому складі — привозимо зі складу постачальника після оформлення замовлення.
термін постачання:
21-31 дні (днів)
Мінімальна партія:
5000 шт
Відгуки про товар
Написати відгук
Технічний опис TF12S-20S-0.5SH(800) Hirose Electric Co Ltd
Description: CONN FPC BOTTOM 20POS 0.5MM R/A, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR), Contact Finish: Gold, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 20, Pitch: 0.020" (0.50mm), Operating Temperature: -55°C ~ 85°C, Termination: Solder, Height Above Board: 0.039" (1.00mm), Locking Feature: Flip Lock, Backlock, Material Flammability Rating: UL94 V-0, Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.20mm, Housing Material: Liquid Crystal Polymer (LCP), Halogen Free, Cable End Type: Notched, Flat Flex Type: FPC, Connector/Contact Type: Contacts, Bottom.
Інші пропозиції TF12S-20S-0.5SH(800) за ціною від 44.93 грн до 117.74 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TF12S-20S-0.5SH(800) | Hirose Electric Co Ltd |
Description: CONN FPC BOTTOM 20POS 0.5MM R/A Features: Solder Retention, Zero Insertion Force (ZIF) Packaging: Cut Tape (CT) Contact Finish: Gold Voltage Rating: 50V Mounting Type: Surface Mount, Right Angle Number of Positions: 20 Pitch: 0.020" (0.50mm) Operating Temperature: -55°C ~ 85°C Termination: Solder Height Above Board: 0.039" (1.00mm) Locking Feature: Flip Lock, Backlock Material Flammability Rating: UL94 V-0 Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.20mm Housing Material: Liquid Crystal Polymer (LCP), Halogen Free Cable End Type: Notched Flat Flex Type: FPC Connector/Contact Type: Contacts, Bottom |
на замовлення 14425 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
 |
TF12S-20S-0.5SH(800) | Hirose Connector |
FFC & FPC Connectors |
на замовлення 1268 шт: термін постачання 31-40 дні (днів) |
|
| TF12S-20S-0.5SH(800) |
|
Виробник: Hirose Electric Co Ltd
Description: CONN FPC BOTTOM 20POS 0.5MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 20
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 85°C
Termination: Solder
Height Above Board: 0.039" (1.00mm)
Locking Feature: Flip Lock, Backlock
Material Flammability Rating: UL94 V-0
Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.20mm
Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type: Notched
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Bottom
Description: CONN FPC BOTTOM 20POS 0.5MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 20
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 85°C
Termination: Solder
Height Above Board: 0.039" (1.00mm)
Locking Feature: Flip Lock, Backlock
Material Flammability Rating: UL94 V-0
Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.20mm
Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type: Notched
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Bottom
на замовлення 14425 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 4+ | 85.62 грн |
| 10+ | 69.89 грн |
| 25+ | 65.45 грн |
| 50+ | 58.48 грн |
| 100+ | 55.69 грн |
| 250+ | 52.20 грн |
| 500+ | 48.90 грн |
| 1000+ | 46.56 грн |
| 2500+ | 44.93 грн |
| TF12S-20S-0.5SH(800) |
|
Виробник: Hirose Connector
FFC & FPC Connectors
FFC & FPC Connectors
на замовлення 1268 шт:
термін постачання 31-40 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 3+ | 117.74 грн |
| 10+ | 99.24 грн |
| 25+ | 76.79 грн |
| 100+ | 72.99 грн |
| 250+ | 68.53 грн |
| 500+ | 65.38 грн |
| 1000+ | 60.85 грн |
