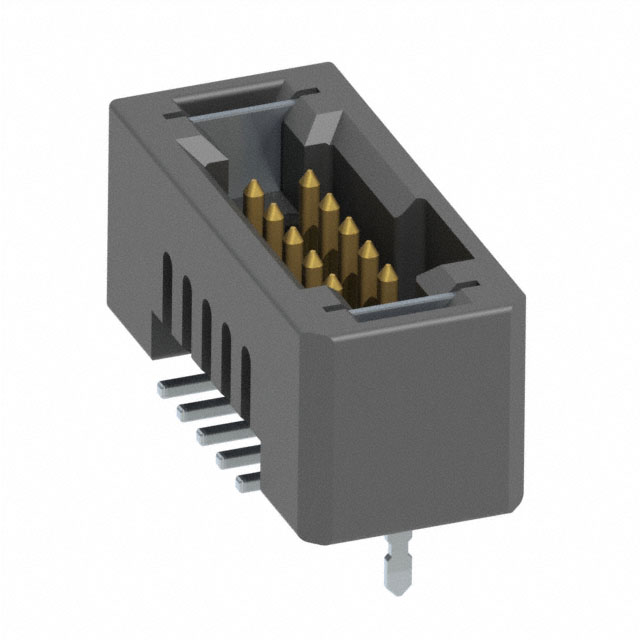

TFM-105-02-L-D-WT-K-TR Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER SMD 10POS 1.27MM
Contact Length - Mating: 0.131" (3.33mm)
Row Spacing - Mating: 0.050" (1.27mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.220" (5.60mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 10
Mounting Type: Surface Mount
Current Rating (Amps): 3.2A per Contact
Voltage Rating: 250VAC
Connector Type: Header
Features: Pick and Place, Solder Retention
Packaging: Tape & Reel (TR)
| Кількість | Ціна |
|---|---|
| 400+ | 119.46 грн |
| 800+ | 99.18 грн |
| 1200+ | 94.55 грн |
| 2000+ | 82.48 грн |
Відгуки про товар
Написати відгук
Технічний опис TFM-105-02-L-D-WT-K-TR Samtec Inc.
Description: CONN HEADER SMD 10POS 1.27MM, Contact Length - Mating: 0.131" (3.33mm), Row Spacing - Mating: 0.050" (1.27mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.220" (5.60mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 10, Mounting Type: Surface Mount, Current Rating (Amps): 3.2A per Contact, Voltage Rating: 250VAC, Connector Type: Header, Features: Pick and Place, Solder Retention, Packaging: Tape & Reel (TR).
Інші пропозиції TFM-105-02-L-D-WT-K-TR за ціною від 97.75 грн до 188.71 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

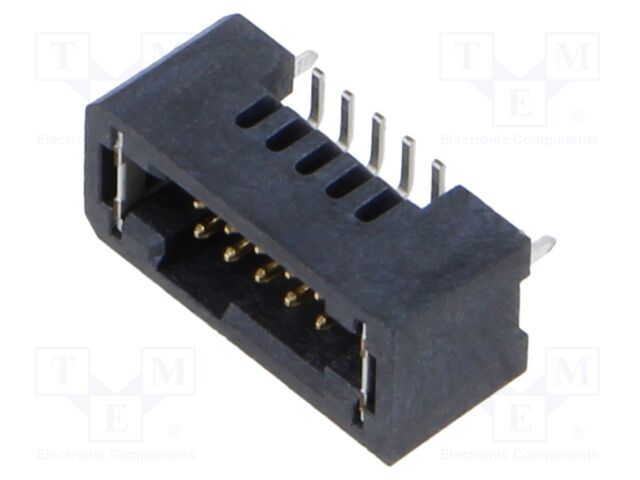

TFM-105-02-L-D-WT-K-TR | SAMTEC |
Category: Board-to-board connectors Description: Connector: PCB to PCB; socket; male; PIN: 10; TFM; vertical; 3.7A Type of connector: PCB to PCB Connector: socket Kind of connector: male Number of pins: 10 Manufacturer series: TFM Spatial orientation: vertical Electrical mounting: SMT Mechanical mounting: on PCBs Contacts pitch: 1.27mm Contact plating: gold-plated Current rating: 3.7A Mechanical durability: 10000 cycles |
на замовлення 7 шт: термін постачання 14-30 дні (днів) |
|
||||||||
|
|
TFM-105-02-L-D-WT-K-TR | Samtec Inc. |
Description: CONN HEADER SMD 10POS 1.27MM Features: Pick and Place, Solder Retention Packaging: Cut Tape (CT) Contact Length - Mating: 0.131" (3.33mm) Row Spacing - Mating: 0.050" (1.27mm) Insulation Material: Liquid Crystal Polymer (LCP) Shrouding: Shrouded - 4 Wall Insulation Height: 0.220" (5.60mm) Contact Shape: Square Contact Finish - Post: Tin Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Mating: Gold Pitch - Mating: 0.050" (1.27mm) Insulation Color: Black Contact Material: Phosphor Bronze Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Push-Pull Contact Type: Male Pin Operating Temperature: -55°C ~ 125°C Style: Board to Board or Cable Number of Rows: 2 Number of Positions: 10 Mounting Type: Surface Mount Current Rating (Amps): 3.2A per Contact Voltage Rating: 250VAC Connector Type: Header |
на замовлення 6423 шт: термін постачання 21-31 дні (днів) |
|
||||||||
 |
TFM-105-02-L-D-WT-K-TR | Samtec |
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips |
на замовлення 1089 шт: термін постачання 21-30 дні (днів) |
|
| TFM-105-02-L-D-WT-K-TR |
|
Виробник: SAMTEC
Category: Board-to-board connectors
Description: Connector: PCB to PCB; socket; male; PIN: 10; TFM; vertical; 3.7A
Type of connector: PCB to PCB
Connector: socket
Kind of connector: male
Number of pins: 10
Manufacturer series: TFM
Spatial orientation: vertical
Electrical mounting: SMT
Mechanical mounting: on PCBs
Contacts pitch: 1.27mm
Contact plating: gold-plated
Current rating: 3.7A
Mechanical durability: 10000 cycles
Category: Board-to-board connectors
Description: Connector: PCB to PCB; socket; male; PIN: 10; TFM; vertical; 3.7A
Type of connector: PCB to PCB
Connector: socket
Kind of connector: male
Number of pins: 10
Manufacturer series: TFM
Spatial orientation: vertical
Electrical mounting: SMT
Mechanical mounting: on PCBs
Contacts pitch: 1.27mm
Contact plating: gold-plated
Current rating: 3.7A
Mechanical durability: 10000 cycles
на замовлення 7 шт:
термін постачання 14-30 дні (днів)| Кількість | Ціна |
|---|---|
| 3+ | 165.00 грн |
| TFM-105-02-L-D-WT-K-TR |
|
Виробник: Samtec Inc.
Description: CONN HEADER SMD 10POS 1.27MM
Features: Pick and Place, Solder Retention
Packaging: Cut Tape (CT)
Contact Length - Mating: 0.131" (3.33mm)
Row Spacing - Mating: 0.050" (1.27mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.220" (5.60mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 10
Mounting Type: Surface Mount
Current Rating (Amps): 3.2A per Contact
Voltage Rating: 250VAC
Connector Type: Header
Description: CONN HEADER SMD 10POS 1.27MM
Features: Pick and Place, Solder Retention
Packaging: Cut Tape (CT)
Contact Length - Mating: 0.131" (3.33mm)
Row Spacing - Mating: 0.050" (1.27mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.220" (5.60mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 10
Mounting Type: Surface Mount
Current Rating (Amps): 3.2A per Contact
Voltage Rating: 250VAC
Connector Type: Header
на замовлення 6423 шт:
термін постачання 21-31 дні (днів)| Кількість | Ціна |
|---|---|
| 2+ | 172.47 грн |
| 50+ | 137.49 грн |
| 100+ | 115.03 грн |
| TFM-105-02-L-D-WT-K-TR |
|
Виробник: Samtec
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips
на замовлення 1089 шт:
термін постачання 21-30 дні (днів)| Кількість | Ціна |
|---|---|
| 2+ | 188.71 грн |
| 50+ | 153.66 грн |
| 100+ | 111.82 грн |
| 800+ | 97.75 грн |
