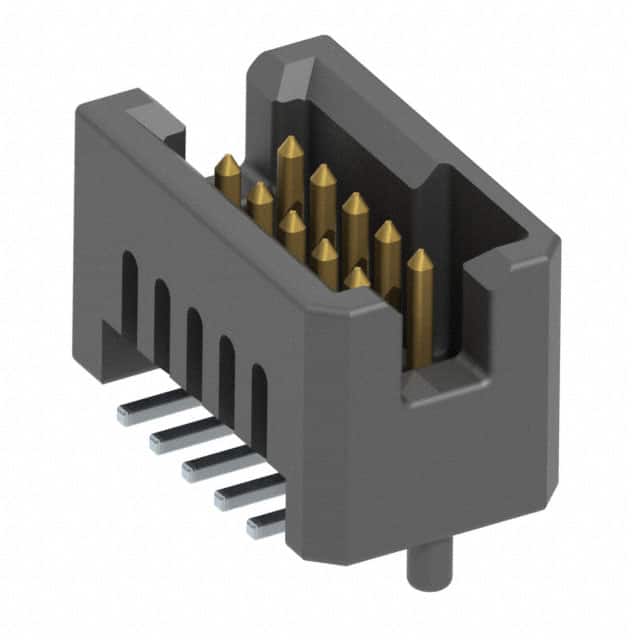

TFM-105-02-S-D-A Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER SMD 10POS 1.27MM
Features: Board Guide
Packaging: Tube
Connector Type: Header
Voltage Rating: 250VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.131" (3.33mm)
| Кількість | Ціна |
|---|---|
| 2+ | 162.55 грн |
| 50+ | 129.27 грн |
| 100+ | 108.18 грн |
| 500+ | 87.52 грн |
Відгуки про товар
Написати відгук
Технічний опис TFM-105-02-S-D-A Samtec Inc.
Description: CONN HEADER SMD 10POS 1.27MM, Features: Board Guide, Packaging: Tube, Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): 3.2A per Contact, Mounting Type: Surface Mount, Number of Positions: 10, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.131" (3.33mm).
Інші пропозиції TFM-105-02-S-D-A за ціною від 75.42 грн до 175.97 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFM-105-02-S-D-A | Samtec |
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips |
на замовлення 1462 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
 |
TFM-105-02-S-D-A | SAMTEC |
Description: SAMTEC - TFM-105-02-S-D-A - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 10 Kontakt(e), Oberflächenmontage tariffCode: 85366930 euEccn: NLR rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 10Kontakt(e) SVHC: No SVHC (04-Feb-2026) Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: Tiger Eye TFM productTraceability: No Kontaktanschluss: Oberflächenmontage usEccn: EAR99 Anzahl der Reihen: 2Reihe(n) Rastermaß: 1.27mm |
на замовлення 26 шт: термін постачання 21-31 дні (днів) |
|
| TFM-105-02-S-D-A |
|
Виробник: Samtec
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips
на замовлення 1462 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 170.22 грн |
| 60+ | 139.41 грн |
| 120+ | 101.49 грн |
| 540+ | 87.40 грн |
| 1020+ | 79.65 грн |
| 2040+ | 75.42 грн |
| TFM-105-02-S-D-A |
|
Виробник: SAMTEC
Description: SAMTEC - TFM-105-02-S-D-A - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 10 Kontakt(e), Oberflächenmontage
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 10Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Tiger Eye TFM
productTraceability: No
Kontaktanschluss: Oberflächenmontage
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
Description: SAMTEC - TFM-105-02-S-D-A - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 10 Kontakt(e), Oberflächenmontage
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 10Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Tiger Eye TFM
productTraceability: No
Kontaktanschluss: Oberflächenmontage
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
на замовлення 26 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 5+ | 175.97 грн |
| 10+ | 153.77 грн |
