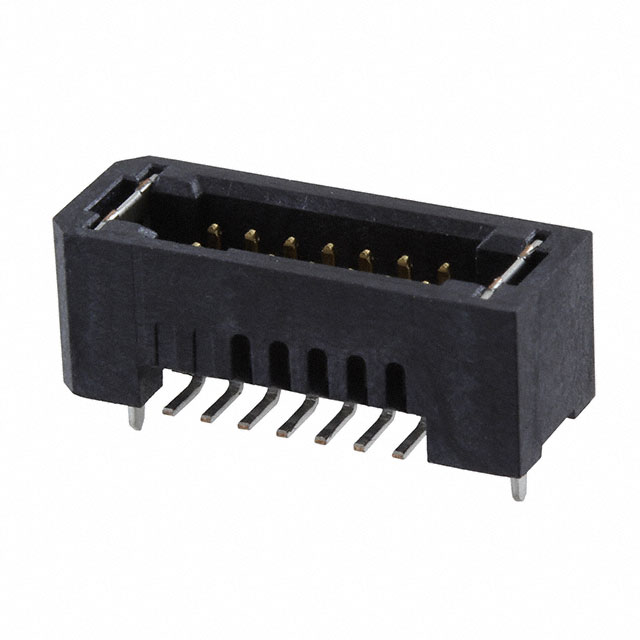

TFM-107-02-S-D-WT-K-TR Samtec Inc.
Виробник: Samtec Inc.Description: CONN HEADER SMD 14POS 1.27MM
Packaging: Tape & Reel (TR)
Features: Pick and Place, Solder Retention
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.131" (3.33mm)
на замовлення 800 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 400+ | 178.64 грн |
| 800+ | 161.15 грн |
Відгуки про товар
Написати відгук
Технічний опис TFM-107-02-S-D-WT-K-TR Samtec Inc.
Description: CONN HEADER SMD 14POS 1.27MM, Packaging: Tape & Reel (TR), Features: Pick and Place, Solder Retention, Connector Type: Header, Voltage Rating: 275VAC, Current Rating (Amps): 3.2A per Contact, Mounting Type: Surface Mount, Number of Positions: 14, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Contact Shape: Square, Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.131" (3.33mm).
Інші пропозиції TFM-107-02-S-D-WT-K-TR за ціною від 132.07 грн до 407.69 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFM-107-02-S-D-WT-K-TR | Виробник : Samtec |
Conn Shrouded Header (4 Sides) HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER EYE™ T/R |
на замовлення 1200 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
|
|
TFM-107-02-S-D-WT-K-TR | Виробник : Samtec Inc. |
Description: CONN HEADER SMD 14POS 1.27MM Packaging: Cut Tape (CT) Features: Pick and Place, Solder Retention Connector Type: Header Voltage Rating: 275VAC Current Rating (Amps): 3.2A per Contact Mounting Type: Surface Mount Number of Positions: 14 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Contact Shape: Square Insulation Height: 0.220" (5.60mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.131" (3.33mm) |
на замовлення 986 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
|
|
TFM-107-02-S-D-WT-K-TR | Виробник : Samtec |
Conn Shrouded Header (4 Sides) HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER EYE™ T/R |
на замовлення 1200 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
 |
TFM-107-02-S-D-WT-K-TR | Виробник : Samtec |
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips, .050" Pitch |
на замовлення 3783 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||
 |
TFM-107-02-S-D-WT-K-TR | Виробник : SAMTEC |
Description: SAMTEC - TFM-107-02-S-D-WT-K-TR - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 14 Kontakt(e) tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 14Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbindertyp: PCB-Stiftleiste Produktpalette: TFM productTraceability: No Kontaktanschluss: Oberflächenmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 1.27mm SVHC: No SVHC (21-Jan-2025) |
на замовлення 33 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
|
|
TFM-107-02-S-D-WT-K-TR | Виробник : Samtec |
Conn Shrouded Header (4 Sides) HDR 14 POS 1.27mm Solder ST Top Entry SMD TIGER EYE™ T/R |
товару немає в наявності |
