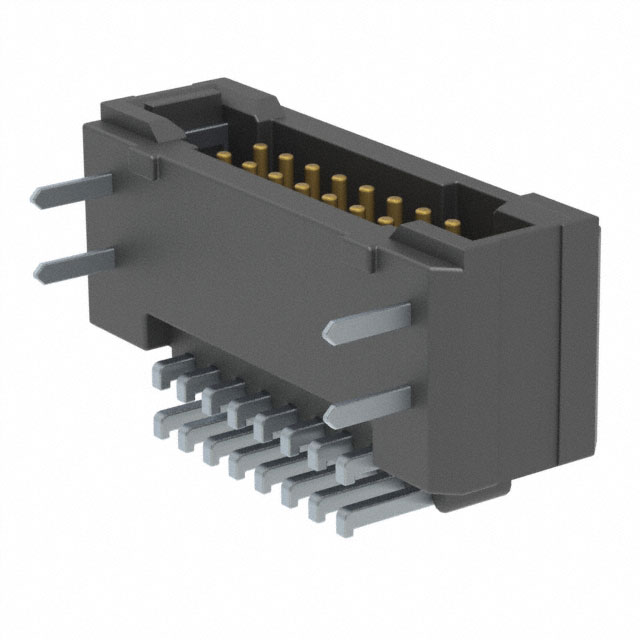

TFM-108-02-L-DH Samtec

Description: CONN HEADER SMD R/A 16POS 1.27MM, Features: Board Guide, Packaging: Tube, Connector Type: Header, Voltage Rating: 275VAC, Current Rating (Amps): 3.2A per Contact, Mounting Type: Surface Mount, Right Angle, Number of Positions: 16, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.225" (5.72mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.150" (3.81mm).
