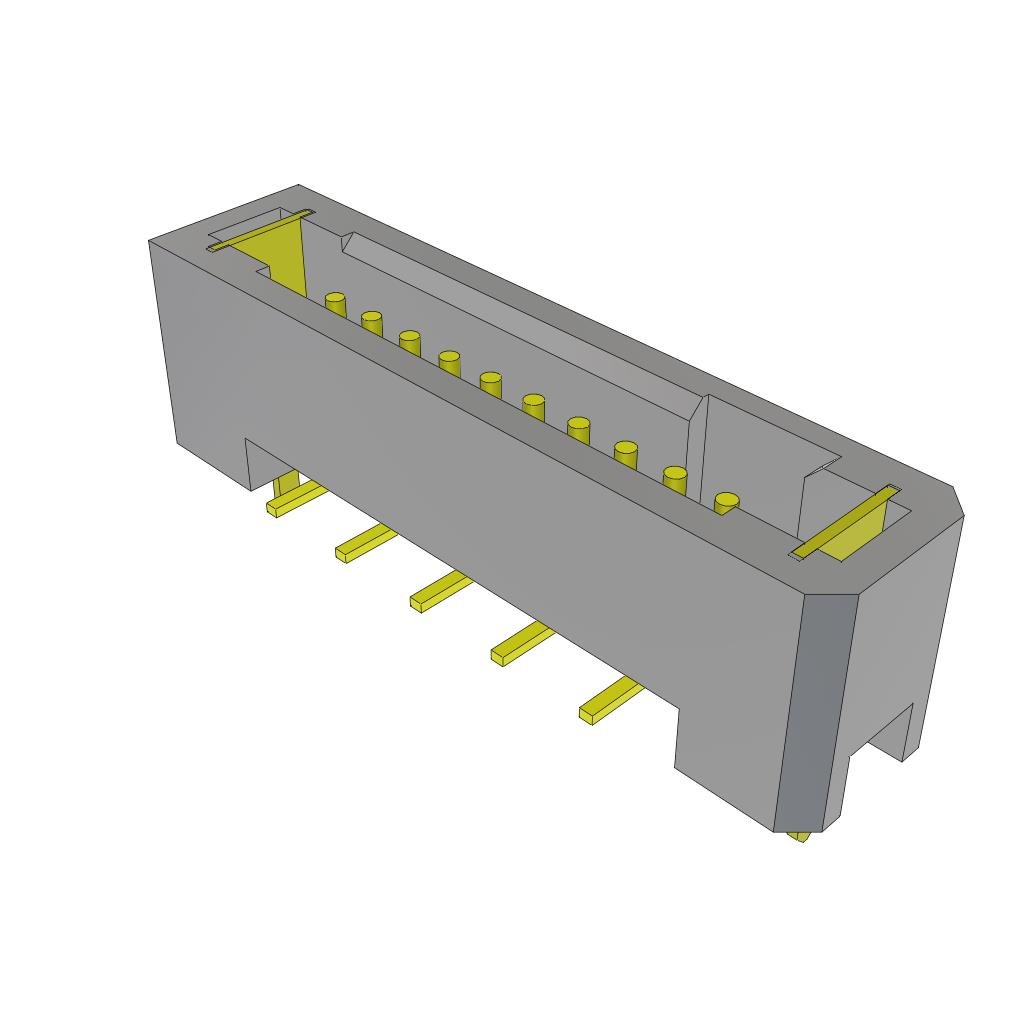

TFM-110-02-L-S-WT Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER SMD 10POS 1.27MM
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 1
Number of Positions: 10
Mounting Type: Surface Mount
Current Rating (Amps): 3.2A per Contact
Voltage Rating: 275VAC
Connector Type: Header
Features: Solder Retention
Packaging: Tube
Contact Length - Mating: 0.131" (3.33mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.220" (5.60mm)
Contact Shape: Square
| Кількість | Ціна |
|---|---|
| 2+ | 193.83 грн |
| 25+ | 170.87 грн |
| 50+ | 156.39 грн |
| 100+ | 135.65 грн |
Відгуки про товар
Написати відгук
Технічний опис TFM-110-02-L-S-WT Samtec Inc.
Description: CONN HEADER SMD 10POS 1.27MM, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 1, Number of Positions: 10, Mounting Type: Surface Mount, Current Rating (Amps): 3.2A per Contact, Voltage Rating: 275VAC, Connector Type: Header, Features: Solder Retention, Packaging: Tube, Contact Length - Mating: 0.131" (3.33mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.220" (5.60mm), Contact Shape: Square.
Інші пропозиції TFM-110-02-L-S-WT за ціною від 118.85 грн до 194.45 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFM-110-02-L-S-WT | Samtec |
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips, .050" Pitch |
на замовлення 56 шт: термін постачання 21-30 дні (днів) |
|
| TFM-110-02-L-S-WT |
|
Виробник: Samtec
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips, .050" Pitch
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips, .050" Pitch
на замовлення 56 шт:
термін постачання 21-30 дні (днів)| Кількість | Ціна |
|---|---|
| 2+ | 194.45 грн |
| 112+ | 148.81 грн |
| 504+ | 120.26 грн |
| 1008+ | 118.85 грн |
