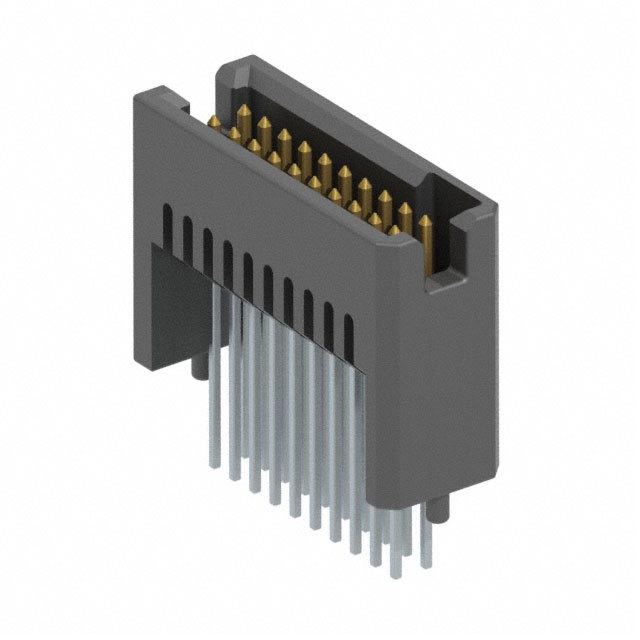

TFM-110-31-L-D-A Samtec Inc.
Виробник: Samtec Inc.Description: CONN HEADER VERT 20POS 1.27MM
Packaging: Tube
Features: Board Guide
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.080" (2.03mm)
Insulation Height: 0.435" (11.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.139" (3.53mm)
на замовлення 653 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 230.78 грн |
| 25+ | 203.85 грн |
| 50+ | 186.62 грн |
| 100+ | 161.83 грн |
| 500+ | 146.97 грн |
Відгуки про товар
Написати відгук
Технічний опис TFM-110-31-L-D-A Samtec Inc.
Description: CONN HEADER VERT 20POS 1.27MM, Packaging: Tube, Features: Board Guide, Connector Type: Header, Voltage Rating: 275VAC, Current Rating (Amps): 3.2A per Contact, Mounting Type: Through Hole, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.080" (2.03mm), Insulation Height: 0.435" (11.05mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.139" (3.53mm).
Інші пропозиції TFM-110-31-L-D-A за ціною від 157.47 грн до 453.42 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFM-110-31-L-D-A | Виробник : Samtec |
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips, .050" Pitch |
на замовлення 577 шт: термін постачання 21-30 дні (днів) |
|
||||||||||
 |
TFM-110-31-L-D-A | Виробник : SAMTEC |
Description: SAMTEC - TFM-110-31-L-D-A - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 20 Kontakt(e), Durchsteckmontage tariffCode: 85366930 productTraceability: No Kontaktüberzug: 0 Kontaktanschluss: 0 rohsCompliant: YES Rastermaß: 0 Anzahl der Kontakte: 0 euEccn: NLR Steckverbindersysteme: 0 Anzahl der Reihen: 0 Kontaktmaterial: 0 Steckverbinderkragen: 0 hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 Produktpalette: Tiger Eye TFM SVHC: No SVHC (17-Jan-2023) |
на замовлення 40 шт: термін постачання 21-31 дні (днів) |
|
