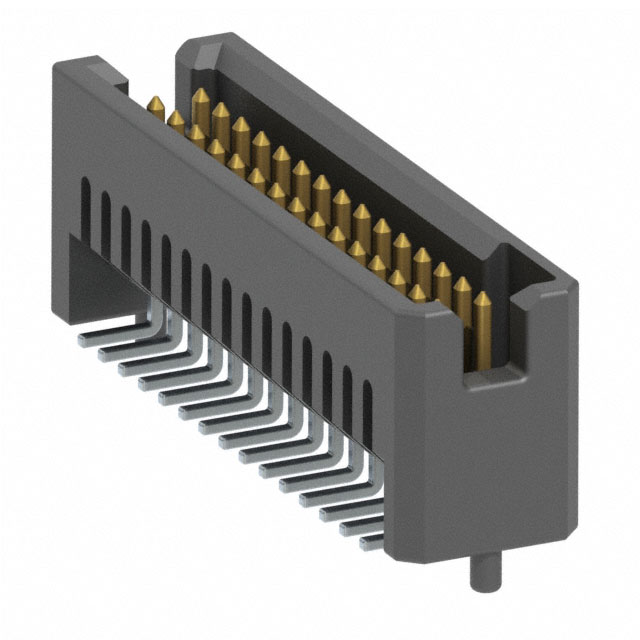

TFM-115-12-S-D-A-P-TR Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER SMD 30POS 1.27MM
Packaging: Cut Tape (CT)
Features: Board Guide, Pick and Place
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 30
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.290" (7.37mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.139" (3.53mm)
| Кількість | Ціна |
|---|---|
| 1+ | 360.86 грн |
| 10+ | 326.07 грн |
| 25+ | 303.73 грн |
| 50+ | 266.51 грн |
| 100+ | 244.86 грн |
Відгуки про товар
Написати відгук
Технічний опис TFM-115-12-S-D-A-P-TR Samtec Inc.
Description: CONN HEADER SMD 30POS 1.27MM, Packaging: Tape & Reel (TR), Features: Board Guide, Pick and Place, Connector Type: Header, Voltage Rating: 275VAC, Current Rating (Amps): 3.2A per Contact, Mounting Type: Surface Mount, Number of Positions: 30, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.290" (7.37mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.139" (3.53mm).
Інші пропозиції TFM-115-12-S-D-A-P-TR за ціною від 394.51 грн до 593.35 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TFM-115-12-S-D-A-P-TR | Виробник : SAMTEC |
Category: Board-to-board connectors Description: Connector: PCB to PCB; plug; male; PIN: 30; TFM; vertical; 3.7A Type of connector: PCB to PCB Connector: plug Kind of connector: male Number of pins: 30 Manufacturer series: TFM Spatial orientation: vertical Current rating: 3.7A Mechanical mounting: on PCBs Contacts pitch: 1.27mm Contact plating: gold-plated; tinned Operating temperature: -55...125°C |
на замовлення 125 шт: термін постачання 14-30 дні (днів) |
|
|||||||
|
|
TFM-115-12-S-D-A-P-TR | Виробник : Samtec Inc. |
Description: CONN HEADER SMD 30POS 1.27MM Packaging: Tape & Reel (TR) Features: Board Guide, Pick and Place Connector Type: Header Voltage Rating: 275VAC Current Rating (Amps): 3.2A per Contact Mounting Type: Surface Mount Number of Positions: 30 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.290" (7.37mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.139" (3.53mm) |
товару немає в наявності |
|||||||
| TFM-115-12-S-D-A-P-TR | Виробник : Samtec |
Headers & Wire Housings .050" Tiger Eye High-Reliability Terminal Strip |
товару немає в наявності |
