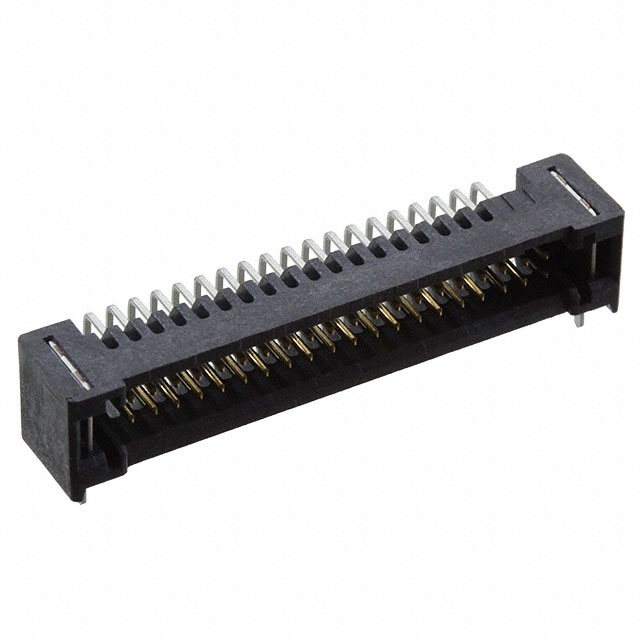

TFM-120-01-L-D-RE1-WT Samtec Inc.
Виробник: Samtec Inc.Description: CONN HEADER R/A 40POS 1.27MM
Packaging: Tube
Features: Solder Retention
Connector Type: Header, Elevated
Voltage Rating: 275VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 40
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.078" (1.98mm)
Insulation Height: 0.256" (6.50mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.139" (3.53mm)
на замовлення 523 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 378.81 грн |
| 10+ | 342.06 грн |
| 25+ | 318.61 грн |
| 50+ | 279.59 грн |
| 100+ | 256.51 грн |
| 500+ | 234.44 грн |
Відгуки про товар
Написати відгук
Технічний опис TFM-120-01-L-D-RE1-WT Samtec Inc.
Description: CONN HEADER R/A 40POS 1.27MM, Packaging: Tube, Features: Solder Retention, Connector Type: Header, Elevated, Voltage Rating: 275VAC, Current Rating (Amps): 3.2A per Contact, Mounting Type: Through Hole, Right Angle, Number of Positions: 40, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.078" (1.98mm), Insulation Height: 0.256" (6.50mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.139" (3.53mm).
Інші пропозиції TFM-120-01-L-D-RE1-WT за ціною від 256.90 грн до 646.25 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFM-120-01-L-D-RE1-WT | Виробник : Samtec |
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips, .050" Pitch |
на замовлення 411 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
| TFM-120-01-L-D-RE1-WT | Виробник : SAMTEC |
TFM-120-01-L-D-RE1 Board-to-board connectors |
на замовлення 10 шт: термін постачання 14-21 дні (днів) |
|
