Продукція > SAMTEC INC. > TFM-120-02-L-D-WT-K-TR
TFM-120-02-L-D-WT-K-TR

TFM-120-02-L-D-WT-K-TR Samtec Inc.

tfm-1xx-xx-xxx-d-xxx-x-xx-mkt.pdf
Виробник: Samtec Inc.

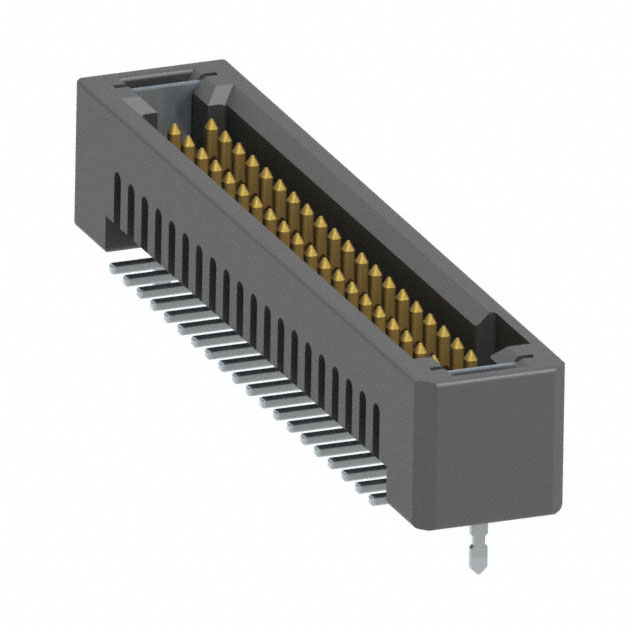

Description: CONN HEADER SMD 40POS 1.27MM
Features: Pick and Place, Solder Retention
Packaging: Tape & Reel (TR)
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 40
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.131" (3.33mm)
на замовлення 1625 шт:
термін постачання 21-31 дні (днів)
КількістьЦіна
325+289.00 грн
650+255.24 грн
1625+234.43 грн
Мінімальне замовлення: 325 шт
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис TFM-120-02-L-D-WT-K-TR Samtec Inc.

Description: CONN HEADER SMD 40POS 1.27MM, Features: Pick and Place, Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 275VAC, Current Rating (Amps): 3.2A per Contact, Mounting Type: Surface Mount, Number of Positions: 40, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.131" (3.33mm).

Інші пропозиції TFM-120-02-L-D-WT-K-TR за ціною від 217.31 грн до 382.92 грн

Фото Назва Виробник Інформація Доступність
Ціна
TFM-120-02-L-D-WT-K-TR TFM-120-02-L-D-WT-K-TR Samtec tfm-1xx-xx-xxx-d-xxx-x-xx-mkt.pdf Headers & Wire Housings High-Reliability Tiger Eye(TM) Terminal Strips
на замовлення 2115 шт:
термін постачання 21-30 дні (днів)
1+370.85 грн
10+342.10 грн
25+277.79 грн
50+259.50 грн
100+244.03 грн
325+235.59 грн
650+217.31 грн
В кошику  од. на суму  грн.
TFM-120-02-L-D-WT-K-TR TFM-120-02-L-D-WT-K-TR Samtec Inc. tfm-1xx-xx-xxx-d-xxx-x-xx-mkt.pdf Description: CONN HEADER SMD 40POS 1.27MM
Features: Pick and Place, Solder Retention
Packaging: Cut Tape (CT)
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 40
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.131" (3.33mm)
на замовлення 1948 шт:
термін постачання 21-31 дні (днів)
1+382.92 грн
10+345.73 грн
25+322.08 грн
50+282.64 грн
100+280.51 грн
В кошику  од. на суму  грн.
TFM-120-02-L-D-WT-K-TR tfm-1xx-xx-xxx-d-xxx-x-xx-mkt.pdf
TFM-120-02-L-D-WT-K-TR
Виробник: Samtec
Headers & Wire Housings High-Reliability Tiger Eye(TM) Terminal Strips
на замовлення 2115 шт:
термін постачання 21-30 дні (днів)
КількістьЦіна
1+370.85 грн
10+342.10 грн
25+277.79 грн
50+259.50 грн
100+244.03 грн
325+235.59 грн
650+217.31 грн
В кошику  од. на суму  грн.
TFM-120-02-L-D-WT-K-TR tfm-1xx-xx-xxx-d-xxx-x-xx-mkt.pdf
TFM-120-02-L-D-WT-K-TR
Виробник: Samtec Inc.
Description: CONN HEADER SMD 40POS 1.27MM
Features: Pick and Place, Solder Retention
Packaging: Cut Tape (CT)
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 40
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.131" (3.33mm)
на замовлення 1948 шт:
термін постачання 21-31 дні (днів)
КількістьЦіна
1+382.92 грн
10+345.73 грн
25+322.08 грн
50+282.64 грн
100+280.51 грн
В кошику  од. на суму  грн.
