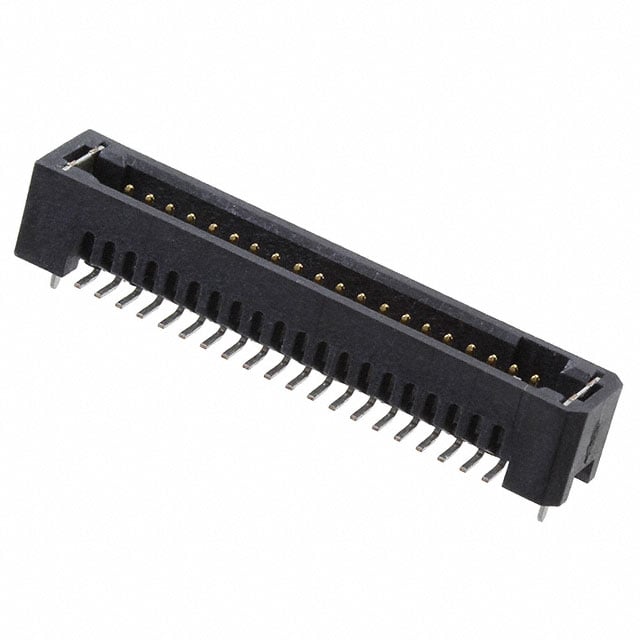

TFM-120-02-L-D-WT Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER SMD 40POS 1.27MM
Packaging: Tube
Features: Solder Retention
Connector Type: Header
Voltage Rating: 250VAC
Current Rating (Amps): 3.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 40
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.131" (3.33mm)
| Кількість | Ціна |
|---|---|
| 1+ | 341.75 грн |
| 10+ | 308.56 грн |
| 25+ | 287.43 грн |
| 50+ | 252.25 грн |
| 100+ | 231.49 грн |
Відгуки про товар
Написати відгук
Технічний опис TFM-120-02-L-D-WT Samtec Inc.
Description: CONN HEADER SMD 40POS 1.27MM, Packaging: Tube, Features: Solder Retention, Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): 3.7A per Contact, Mounting Type: Surface Mount, Number of Positions: 40, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.131" (3.33mm).
Інші пропозиції TFM-120-02-L-D-WT за ціною від 241.76 грн до 456.37 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFM-120-02-L-D-WT | Samtec |
Headers & Wire Housings High-Reliability Tiger Eye(TM) Terminal Strips |
на замовлення 356 шт: термін постачання 21-30 дні (днів) |
|
||||||||||
 |
TFM-120-02-L-D-WT | SAMTEC |
Description: SAMTEC - TFM-120-02-L-D-WT - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 40 Kontakt(e) tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 40Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: Tiger Eye TFM productTraceability: No Kontaktanschluss: Oberflächenmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 1.27mm SVHC: No SVHC (04-Feb-2026) |
на замовлення 57 шт: термін постачання 21-31 дні (днів) |
|
| TFM-120-02-L-D-WT |
|
Виробник: Samtec
Headers & Wire Housings High-Reliability Tiger Eye(TM) Terminal Strips
Headers & Wire Housings High-Reliability Tiger Eye(TM) Terminal Strips
на замовлення 356 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 402.10 грн |
| 10+ | 372.04 грн |
| 51+ | 281.23 грн |
| 102+ | 257.97 грн |
| 510+ | 241.76 грн |
| TFM-120-02-L-D-WT |
|
Виробник: SAMTEC
Description: SAMTEC - TFM-120-02-L-D-WT - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 40 Kontakt(e)
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 40Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Tiger Eye TFM
productTraceability: No
Kontaktanschluss: Oberflächenmontage
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
SVHC: No SVHC (04-Feb-2026)
Description: SAMTEC - TFM-120-02-L-D-WT - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 40 Kontakt(e)
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 40Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Tiger Eye TFM
productTraceability: No
Kontaktanschluss: Oberflächenmontage
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
SVHC: No SVHC (04-Feb-2026)
на замовлення 57 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 456.37 грн |
| 10+ | 376.61 грн |
