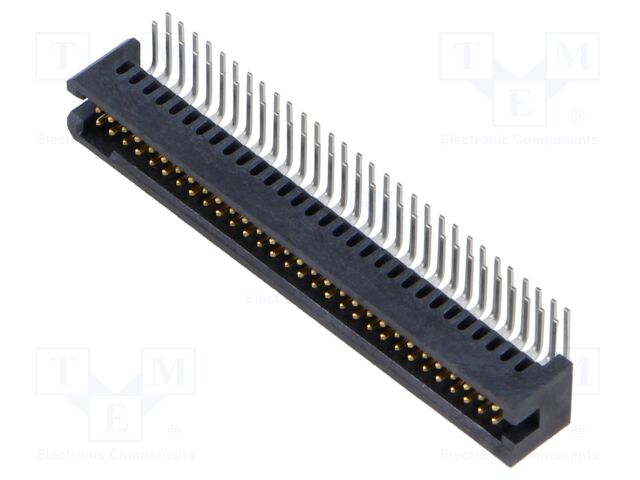

TFM-130-01-S-D-RA SAMTEC
Виробник: SAMTEC
Description: SAMTEC - TFM-130-01-S-D-RA - Stiftleiste, abgewinkelt, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 60 Kontakt(e)
tariffCode: 85366930
productTraceability: No
rohsCompliant: YES
Rastermaß: 1.27mm
Anzahl der Kontakte: 60Contacts
euEccn: NLR
Anzahl der Reihen: 2Rows
hazardous: false
rohsPhthalatesCompliant: YES
usEccn: EAR99
| Кількість | Ціна |
|---|---|
| 2+ | 477.76 грн |
Відгуки про товар
Написати відгук
Технічний опис TFM-130-01-S-D-RA SAMTEC
Description: CONN HEADER R/A 60POS 1.27MM, Packaging: Tube, Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): 3.2A per Contact, Mounting Type: Through Hole, Right Angle, Number of Positions: 60, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.075" (1.91mm), Insulation Height: 0.225" (5.72mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.142" (3.61mm).
Інші пропозиції TFM-130-01-S-D-RA за ціною від 405.32 грн до 626.96 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFM-130-01-S-D-RA | Виробник : Samtec Inc. |
Description: CONN HEADER R/A 60POS 1.27MM Packaging: Tube Connector Type: Header Voltage Rating: 250VAC Current Rating (Amps): 3.2A per Contact Mounting Type: Through Hole, Right Angle Number of Positions: 60 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.075" (1.91mm) Insulation Height: 0.225" (5.72mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.142" (3.61mm) |
на замовлення 66 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
TFM-130-01-S-D-RA | Виробник : SAMTEC |
Category: Board-to-board connectors Description: Connector: PCB to PCB; socket; male; PIN: 60; TFM; angled; 3.7A; THT Kind of connector: male Mechanical mounting: on PCBs Contact plating: selectively silver plated Type of connector: PCB to PCB Electrical mounting: THT Connector: socket Manufacturer series: TFM Contacts pitch: 1.27mm Current rating: 3.7A Number of pins: 60 Mechanical durability: 10000 cycles Spatial orientation: angled |
на замовлення 10 шт: термін постачання 14-30 дні (днів) |
|
||||||||||||
 |
TFM-130-01-S-D-RA | Виробник : Samtec |
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips |
на замовлення 237 шт: термін постачання 21-30 дні (днів) |
|
