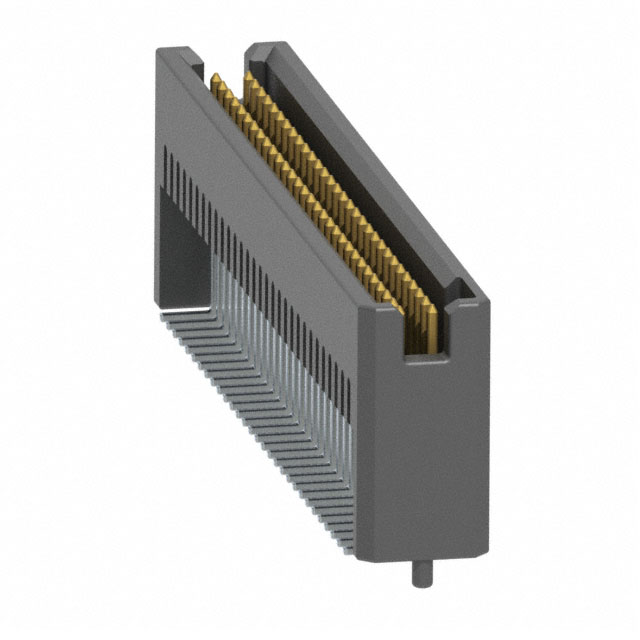

TFM-130-32-S-D-A Samtec Inc.
Виробник: Samtec Inc.Description: CONN HEADER SMD 60POS 1.27MM
Features: Board Guide
Packaging: Tube
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 60
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.435" (11.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.139" (3.53mm)
на замовлення 527 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 697.02 грн |
| 10+ | 644.76 грн |
| 25+ | 611.44 грн |
| 50+ | 543.12 грн |
| 100+ | 493.34 грн |
| 250+ | 462.44 грн |
Відгуки про товар
Написати відгук
Технічний опис TFM-130-32-S-D-A Samtec Inc.
Description: CONN HEADER SMD 60POS 1.27MM, Features: Board Guide, Packaging: Tube, Connector Type: Header, Voltage Rating: 275VAC, Current Rating (Amps): 3.2A per Contact, Mounting Type: Surface Mount, Number of Positions: 60, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.435" (11.05mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.139" (3.53mm).
Інші пропозиції TFM-130-32-S-D-A за ціною від 553.79 грн до 821.93 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFM-130-32-S-D-A | Виробник : Samtec |
Headers & Wire Housings High-Reliability Tiger Eye(TM) Terminal Strips |
на замовлення 129 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
 |
TFM-130-32-S-D-A | Виробник : SAMTEC |
Description: SAMTEC - TFM-130-32-S-D-A - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 60 Kontakt(e) tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 60Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Produktpalette: Tiger Eye TFM productTraceability: No Kontaktanschluss: Oberflächenmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 1.27mm SVHC: No SVHC (15-Jan-2018) |
на замовлення 9 шт: термін постачання 21-31 дні (днів) |
|
