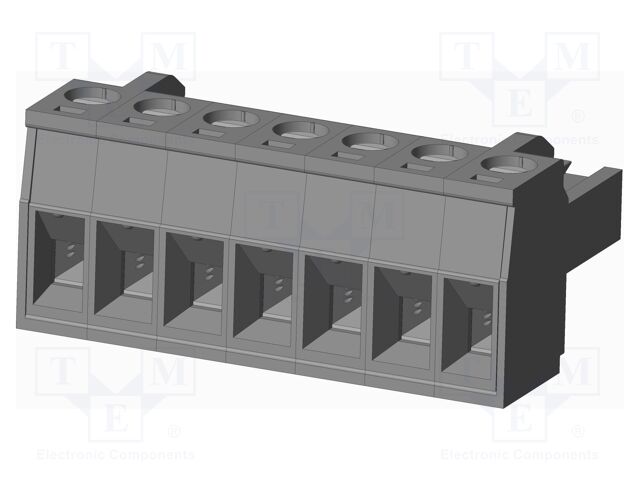

TJ0751860000G AMPHENOL ANYTEK
Виробник: AMPHENOL ANYTEKCategory: Pluggable terminal blocks
Description: Pluggable terminal block; 5.08mm; straight; plug; female; grey
Colour: grey
Operating temperature: -40...115°C
Flammability rating: UL94V-0
Current rating: 12A
Body material: PA66
Number of pins: 7
Contact material: phosphor bronze
Contacts pitch: 5.08mm
Wire size: 24AWG...12AWG
Electrical mounting: screw terminal
Mechanical mounting: for cable
Spatial orientation: straight
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Contact plating: tinned
Rated voltage: 300V
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис TJ0751860000G AMPHENOL ANYTEK
Category: Pluggable terminal blocks, Description: Pluggable terminal block; 5.08mm; straight; plug; female; grey, Colour: grey, Operating temperature: -40...115°C, Flammability rating: UL94V-0, Current rating: 12A, Body material: PA66, Number of pins: 7, Contact material: phosphor bronze, Contacts pitch: 5.08mm, Wire size: 24AWG...12AWG, Electrical mounting: screw terminal, Mechanical mounting: for cable, Spatial orientation: straight, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Contact plating: tinned, Rated voltage: 300V, кількість в упаковці: 1 шт.
Інші пропозиції TJ0751860000G
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| TJ0751860000G | Виробник : Amphenol Anytek |
Description: TERM BLOCK PLUG 7POS STR 5.08MM Features: Retention Latches (Non-Wire Side) Packaging: Bulk Color: Gray Mounting Type: Free Hanging (In-Line) Number of Positions: 7 Pitch: 0.200" (5.08mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw Number of Levels: 1 Wire Gauge or Range - AWG: 12-24 AWG Positions Per Level: 7 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 20 A Voltage - UL: 300 V |
товару немає в наявності |
||
| TJ0751860000G | Виробник : Amphenol Anytek |
Pluggable Terminal Blocks 508 TB PLU PLU UP/SIDE |
товару немає в наявності |
||
|
|
TJ0751860000G | Виробник : AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Pluggable terminal block; 5.08mm; straight; plug; female; grey Colour: grey Operating temperature: -40...115°C Flammability rating: UL94V-0 Current rating: 12A Body material: PA66 Number of pins: 7 Contact material: phosphor bronze Contacts pitch: 5.08mm Wire size: 24AWG...12AWG Electrical mounting: screw terminal Mechanical mounting: for cable Spatial orientation: straight Type of connector: pluggable terminal block Connector: plug Kind of connector: female Contact plating: tinned Rated voltage: 300V |
товару немає в наявності |
