Продукція > AMPHENOL ANYTEK > TJ1131530000G

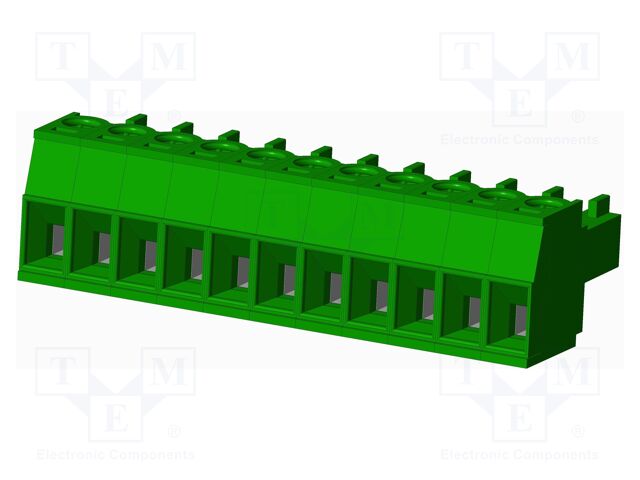

TJ1131530000G AMPHENOL ANYTEK

Name: TJ1131530000G
Brand: AMPHENOL ANYTEK
SKU: 460269698-1
Price: 232554.3 UAH
Availability: BackOrder

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC894D37700C0D6&compId=TJ3.81.pdf?ci_sign=d0a4077a3fe1b0458d6d3dd25985df11d66c8b5a

Виробник: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 10A; 300V; 1x11
Type of connector: pluggable terminal block; pluggable terminal block
Connector: plug; plug
Kind of connector: female; female
Contact plating: tinned; tinned
Rated voltage: 300V; 300V
Operating temperature: -40...115°C; -40...115°C
Current rating: 10A; 10A
Flammability rating: UL94V-0; UL94V-0
Body material: thermoplastic; thermoplastic
Number of pins: 11; 11
Connector pinout layout: 1x11; 1x11
Contacts pitch: 3.81mm; 3.81mm
Wire cross-section: 1.5mm²; 1.5mm²
Wire size: 28AWG...16AWG; 28AWG...16AWG
Locking system: friction lock; friction lock
Electrical mounting: screw terminal; screw terminal
Mechanical mounting: for cable; for cable
Spatial orientation: straight; straight
Colour: green; green
кількість в упаковці: 1 шт

товару немає в наявності

В кошику од. на суму грн.

Відгуки про товар

Написати відгук

Технічний опис TJ1131530000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 10A; 300V; 1x11, Type of connector: pluggable terminal block; pluggable terminal block, Connector: plug; plug, Kind of connector: female; female, Contact plating: tinned; tinned, Rated voltage: 300V; 300V, Operating temperature: -40...115°C; -40...115°C, Current rating: 10A; 10A, Flammability rating: UL94V-0; UL94V-0, Body material: thermoplastic; thermoplastic, Number of pins: 11; 11, Connector pinout layout: 1x11; 1x11, Contacts pitch: 3.81mm; 3.81mm, Wire cross-section: 1.5mm2; 1.5mm2, Wire size: 28AWG...16AWG; 28AWG...16AWG, Locking system: friction lock; friction lock, Electrical mounting: screw terminal; screw terminal, Mechanical mounting: for cable; for cable, Spatial orientation: straight; straight, Colour: green; green, кількість в упаковці: 1 шт.

Інші пропозиції TJ1131530000G

Фото	Назва	Виробник	Інформація	Доступність	Ціна
	TJ1131530000G	Виробник : Amphenol Anytek	Pluggable Terminal Blocks 381 TB PLGBLE PLUG	товару немає в наявності	В кошику од. на суму грн.
	TJ1131530000G	Виробник : AMPHENOL ANYTEK	Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 10A; 300V; 1x11 Type of connector: pluggable terminal block; pluggable terminal block Connector: plug; plug Kind of connector: female; female Contact plating: tinned; tinned Rated voltage: 300V; 300V Operating temperature: -40...115°C; -40...115°C Current rating: 10A; 10A Flammability rating: UL94V-0; UL94V-0 Body material: thermoplastic; thermoplastic Number of pins: 11; 11 Connector pinout layout: 1x11; 1x11 Contacts pitch: 3.81mm; 3.81mm Wire cross-section: 1.5mm²; 1.5mm² Wire size: 28AWG...16AWG; 28AWG...16AWG Locking system: friction lock; friction lock Electrical mounting: screw terminal; screw terminal Mechanical mounting: for cable; for cable Spatial orientation: straight; straight Colour: green; green	товару немає в наявності	В кошику од. на суму грн.
