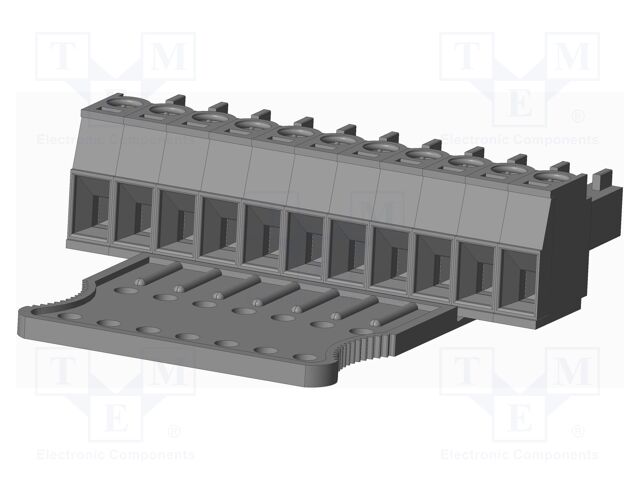

TJ1131840000G AMPHENOL ANYTEK
Виробник: AMPHENOL ANYTEKCategory: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 10A; 300V; grey
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Contact plating: tinned
Rated voltage: 300V
Operating temperature: -40...115°C
Current rating: 10A
Flammability rating: UL94V-0
Body material: PA66
Number of pins: 11
Contact material: phosphor bronze
Contacts pitch: 3.81mm
Wire size: 28AWG...16AWG
Electrical mounting: screw terminal
Mechanical mounting: for cable
Spatial orientation: straight
Colour: grey
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис TJ1131840000G AMPHENOL ANYTEK
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 10A; 300V; grey, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Contact plating: tinned, Rated voltage: 300V, Operating temperature: -40...115°C, Current rating: 10A, Flammability rating: UL94V-0, Body material: PA66, Number of pins: 11, Contact material: phosphor bronze, Contacts pitch: 3.81mm, Wire size: 28AWG...16AWG, Electrical mounting: screw terminal, Mechanical mounting: for cable, Spatial orientation: straight, Colour: grey, кількість в упаковці: 1 шт.
Інші пропозиції TJ1131840000G
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| TJ1131840000G | Виробник : Amphenol Anytek |
Description: TERM BLOCK PLUG 11POS STR 3.81MM Packaging: Bulk Features: Strain Relief Color: Gray Mounting Type: Free Hanging (In-Line) Number of Positions: 11 Pitch: 0.150" (3.81mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw Current - IEC: 10.5A Number of Levels: 1 Wire Gauge or Range - AWG: 16-28 AWG Wire Gauge or Range - mm²: 1.5mm² Positions Per Level: 11 Plug Wire Entry: 180° Contact Mating Finish: Tin Part Status: Active Current - UL: 10 A Voltage - IEC: 300 V Voltage - UL: 300 V |
товару немає в наявності |
||
| TJ1131840000G | Виробник : Amphenol Anytek |
Pluggable Terminal Blocks 381 TB PLU PLU W/HANDLE |
товару немає в наявності |
||
| TJ1131840000G | Виробник : AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 10A; 300V; grey Type of connector: pluggable terminal block Connector: plug Kind of connector: female Contact plating: tinned Rated voltage: 300V Operating temperature: -40...115°C Current rating: 10A Flammability rating: UL94V-0 Body material: PA66 Number of pins: 11 Contact material: phosphor bronze Contacts pitch: 3.81mm Wire size: 28AWG...16AWG Electrical mounting: screw terminal Mechanical mounting: for cable Spatial orientation: straight Colour: grey |
товару немає в наявності |
