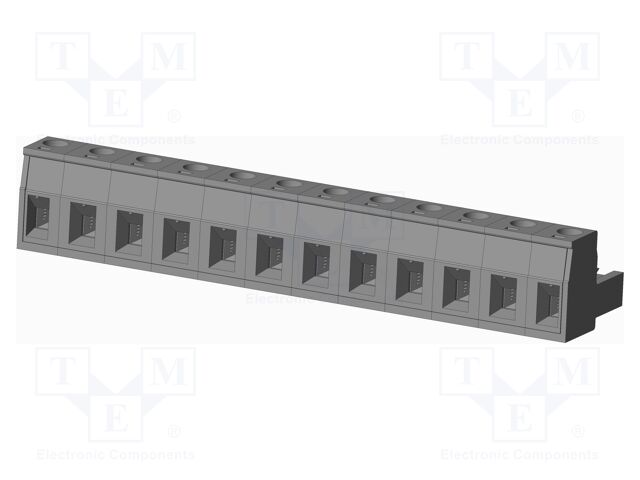

TJ1201800000G

TJ1201800000G AMPHENOL ANYTEK


pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC89542474440D6&compId=TJ7.62.pdf?ci_sign=6162452e8742553f48f596338470cac5263e7b37 pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93 Виробник: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey
Colour: grey
Rated voltage: 300V
Operating temperature: -40...115°C
Current rating: 12A
Flammability rating: UL94V-0
Body material: PA66
Number of pins: 12
Contact material: phosphor bronze
Contacts pitch: 7.62mm
Wire size: 24AWG...12AWG
Electrical mounting: screw terminal
Mechanical mounting: for cable
Spatial orientation: straight
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Contact plating: tinned
кількість в упаковці: 1 шт
товару немає в наявності

В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис TJ1201800000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey, Colour: grey, Rated voltage: 300V, Operating temperature: -40...115°C, Current rating: 12A, Flammability rating: UL94V-0, Body material: PA66, Number of pins: 12, Contact material: phosphor bronze, Contacts pitch: 7.62mm, Wire size: 24AWG...12AWG, Electrical mounting: screw terminal, Mechanical mounting: for cable, Spatial orientation: straight, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Contact plating: tinned, кількість в упаковці: 1 шт.

Інші пропозиції TJ1201800000G

Фото Назва Виробник Інформація Доступність
Ціна
TJ1201800000G Виробник : Amphenol Anytek gI_wC_u0xD3_.pdf Description: TERM BLOCK PLUG 12POS 7.62MM
Packaging: Bulk
Features: Retention Latches (Non-Wire Side)
Color: Gray
Mounting Type: Free Hanging (In-Line)
Number of Positions: 12
Pitch: 0.300" (7.62mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw
Number of Levels: 1
Wire Gauge or Range - AWG: 12-24 AWG
Positions Per Level: 12
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 20 A
Voltage - UL: 300 V
товару немає в наявності
В кошику  од. на суму  грн.
TJ1201800000G Виробник : Amphenol Anytek diOiAs_uOTtD-1379690.pdf Pluggable Terminal Blocks 762 TB PLUGGABLE PLUG
товару немає в наявності
В кошику  од. на суму  грн.
TJ1201800000G TJ1201800000G Виробник : AMPHENOL ANYTEK pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC89542474440D6&compId=TJ7.62.pdf?ci_sign=6162452e8742553f48f596338470cac5263e7b37 pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93 Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey
Colour: grey
Rated voltage: 300V
Operating temperature: -40...115°C
Current rating: 12A
Flammability rating: UL94V-0
Body material: PA66
Number of pins: 12
Contact material: phosphor bronze
Contacts pitch: 7.62mm
Wire size: 24AWG...12AWG
Electrical mounting: screw terminal
Mechanical mounting: for cable
Spatial orientation: straight
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Contact plating: tinned
товару немає в наявності
В кошику  од. на суму  грн.
