TJ1611530800G

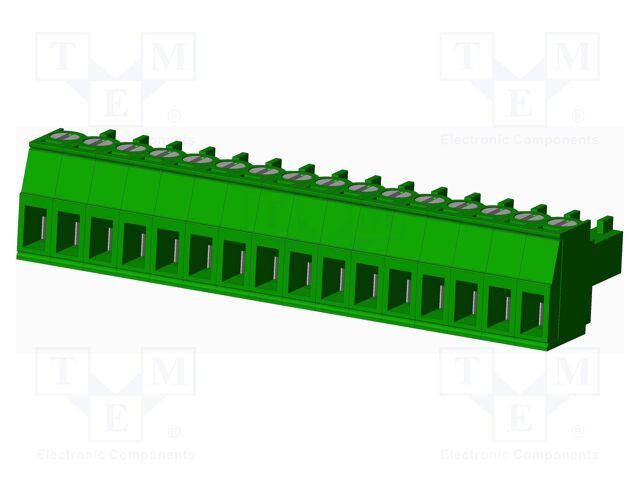

TJ1611530800G AMPHENOL ANYTEK

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93 pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC894B1FC81C0D6&compId=TJ3.5.pdf?ci_sign=d740c70abbfe8313382c2e7950d224feda27f1e6 Виробник: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 10A; 300V; PA66
Operating temperature: -40...115°C
Current rating: 10A
Flammability rating: UL94V-0
Body material: PA66
Number of pins: 16
Contact material: phosphor bronze
Contacts pitch: 3.5mm
Wire size: 28AWG...16AWG
Electrical mounting: screw terminal
Mechanical mounting: for cable
Spatial orientation: straight
Colour: green
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Contact plating: tinned
Rated voltage: 300V
кількість в упаковці: 1 шт
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис TJ1611530800G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 10A; 300V; PA66, Operating temperature: -40...115°C, Current rating: 10A, Flammability rating: UL94V-0, Body material: PA66, Number of pins: 16, Contact material: phosphor bronze, Contacts pitch: 3.5mm, Wire size: 28AWG...16AWG, Electrical mounting: screw terminal, Mechanical mounting: for cable, Spatial orientation: straight, Colour: green, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Contact plating: tinned, Rated voltage: 300V, кількість в упаковці: 1 шт.

Інші пропозиції TJ1611530800G

Фото Назва Виробник Інформація Доступність
Ціна
TJ1611530800G Виробник : Amphenol Anytek TJxx11x3xxxxG.pdf Description: TERM BLOCK PLUG 16POS 3.50MM
Packaging: Bulk
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 16
Pitch: 0.138" (3.50mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw - Leaf Spring, Wire Guard
Number of Levels: 1
Wire Gauge or Range - AWG: 16-28 AWG
Wire Gauge or Range - mm²: 1.5mm²
Positions Per Level: 16
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 10 A
Voltage - UL: 300 V
товару немає в наявності
В кошику  од. на суму  грн.
TJ1611530800G Виробник : Amphenol Anytek TJxx11x3xxxxG.pdf Pluggable Terminal Blocks PLUGGABLE SYSTEM
товару немає в наявності
В кошику  од. на суму  грн.
TJ1611530800G TJ1611530800G Виробник : AMPHENOL ANYTEK pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93 pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC894B1FC81C0D6&compId=TJ3.5.pdf?ci_sign=d740c70abbfe8313382c2e7950d224feda27f1e6 Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 10A; 300V; PA66
Operating temperature: -40...115°C
Current rating: 10A
Flammability rating: UL94V-0
Body material: PA66
Number of pins: 16
Contact material: phosphor bronze
Contacts pitch: 3.5mm
Wire size: 28AWG...16AWG
Electrical mounting: screw terminal
Mechanical mounting: for cable
Spatial orientation: straight
Colour: green
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Contact plating: tinned
Rated voltage: 300V
