TJ1671540000G Amphenol Anytek
Виробник: Amphenol Anytek

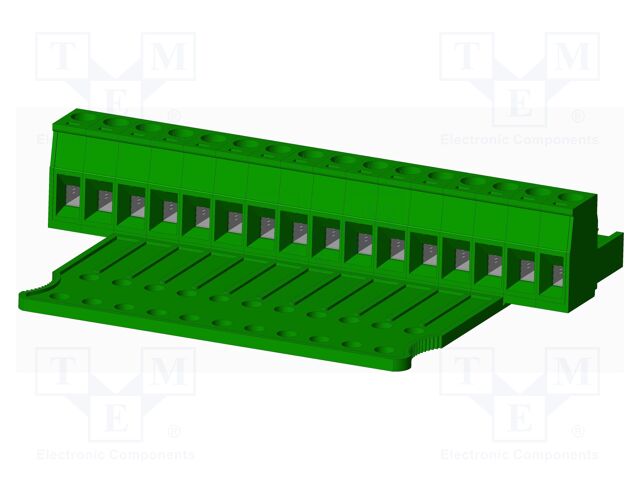

Description: TERM BLOCK PLUG 16POS STR 5MM
Current - IEC: 20A
Termination Style: Screw
Operating Temperature: -40°C ~ 115°C
Type: Plug, Female Sockets
Pitch: 0.197" (5.00mm)
Number of Positions: 16
Mounting Type: Free Hanging (In-Line)
Color: Green
Features: Retention Latches (Non-Wire Side), Strain Relief
Packaging: Bulk
Voltage - UL: 300 V
Voltage - IEC: 300 V
Current - UL: 20 A
Part Status: Active
Contact Mating Finish: Tin
Plug Wire Entry: 180°
Positions Per Level: 16
Wire Gauge or Range - mm²: 0.34-2.5mm²
Wire Gauge or Range - AWG: 12-24 AWG
Number of Levels: 1
Відгуки про товар
Написати відгук
Технічний опис TJ1671540000G Amphenol Anytek
Description: TERM BLOCK PLUG 16POS STR 5MM, Current - IEC: 20A, Termination Style: Screw, Operating Temperature: -40°C ~ 115°C, Type: Plug, Female Sockets, Pitch: 0.197" (5.00mm), Number of Positions: 16, Mounting Type: Free Hanging (In-Line), Color: Green, Features: Retention Latches (Non-Wire Side), Strain Relief, Packaging: Bulk, Voltage - UL: 300 V, Voltage - IEC: 300 V, Current - UL: 20 A, Part Status: Active, Contact Mating Finish: Tin, Plug Wire Entry: 180°, Positions Per Level: 16, Wire Gauge or Range - mm²: 0.34-2.5mm², Wire Gauge or Range - AWG: 12-24 AWG, Number of Levels: 1.
Інші пропозиції TJ1671540000G
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| TJ1671540000G | Виробник : Amphenol Anytek |
Pluggable Terminal Blocks TB PLU PLU W/HANDLE |
товару немає в наявності |
||
 |
TJ1671540000G | Виробник : AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 12A; 300V; PA66 Type of connector: pluggable terminal block Connector: plug Kind of connector: female Current rating: 12A Rated voltage: 0.3kV Number of pins: 16 Spatial orientation: straight Mechanical mounting: for cable Electrical mounting: screw terminal Contact material: phosphor bronze Contact plating: tinned Colour: green Flammability rating: UL94V-0 Body material: PA66 Wire size: 24AWG...12AWG Contacts pitch: 5mm Operating temperature: -40...115°C |
товару немає в наявності |
