TJ2031840000G AMPHENOL ANYTEK
Виробник: AMPHENOL ANYTEKCategory: Pluggable terminal blocks

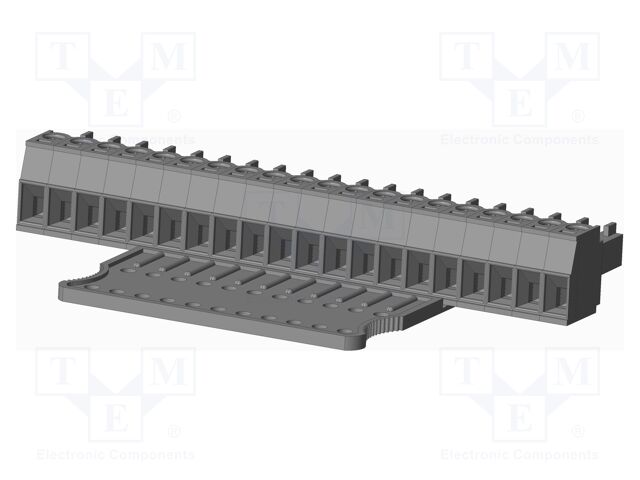

Description: Connector: pluggable terminal block; plug; female; 10A; 300V; grey
Operating temperature: -40...115°C
Current rating: 10A
Flammability rating: UL94V-0
Rated voltage: 300V
Contact plating: tinned
Kind of connector: female
Connector: plug
Body material: PA66
Number of pins: 20
Contact material: phosphor bronze
Contacts pitch: 3.81mm
Wire size: 28AWG...16AWG
Electrical mounting: screw terminal
Mechanical mounting: for cable
Type of connector: pluggable terminal block
Spatial orientation: straight
Colour: grey
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис TJ2031840000G AMPHENOL ANYTEK
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 10A; 300V; grey, Operating temperature: -40...115°C, Current rating: 10A, Flammability rating: UL94V-0, Rated voltage: 300V, Contact plating: tinned, Kind of connector: female, Connector: plug, Body material: PA66, Number of pins: 20, Contact material: phosphor bronze, Contacts pitch: 3.81mm, Wire size: 28AWG...16AWG, Electrical mounting: screw terminal, Mechanical mounting: for cable, Type of connector: pluggable terminal block, Spatial orientation: straight, Colour: grey, кількість в упаковці: 1 шт.
Інші пропозиції TJ2031840000G
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| TJ2031840000G | Виробник : Amphenol Anytek |
Description: TERM BLOCK PLUG 20POS STR 3.81MM Features: Strain Relief Packaging: Bulk Color: Gray Mounting Type: Free Hanging (In-Line) Number of Positions: 20 Pitch: 0.150" (3.81mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw Current - IEC: 10.5A Number of Levels: 1 Wire Gauge or Range - AWG: 16-28 AWG Wire Gauge or Range - mm²: 1.5mm² Positions Per Level: 20 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 10 A Voltage - IEC: 300 V Voltage - UL: 300 V |
товару немає в наявності |
||
| TJ2031840000G | Виробник : Amphenol Anytek |
Pluggable Terminal Blocks 381 TB PLU PLU W/HANDLE |
товару немає в наявності |
||
|
|
TJ2031840000G | Виробник : AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 10A; 300V; grey Operating temperature: -40...115°C Current rating: 10A Flammability rating: UL94V-0 Rated voltage: 300V Contact plating: tinned Kind of connector: female Connector: plug Body material: PA66 Number of pins: 20 Contact material: phosphor bronze Contacts pitch: 3.81mm Wire size: 28AWG...16AWG Electrical mounting: screw terminal Mechanical mounting: for cable Type of connector: pluggable terminal block Spatial orientation: straight Colour: grey |
товару немає в наявності |
