Продукція > AMPHENOL ANYTEK > TJ2271500000G

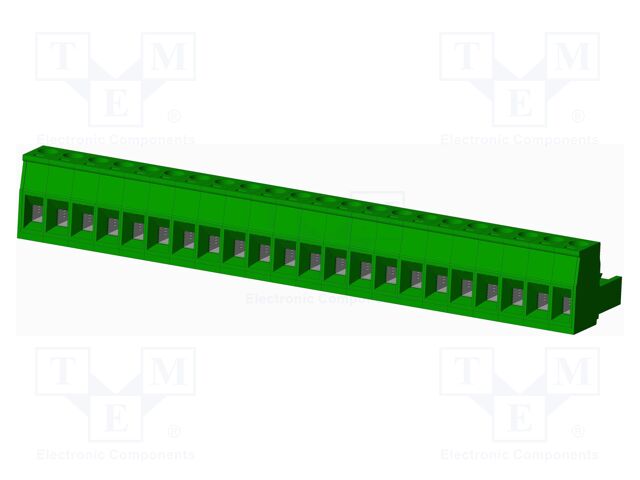

TJ2271500000G AMPHENOL ANYTEK

Name: TJ2271500000G
Brand: AMPHENOL ANYTEK
SKU: 460270338-1
Price: 680787 UAH
Availability: BackOrder

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC89495299880D6&compId=TJ5.071.pdf?ci_sign=210d7ce719302022096a2cbe5eec48d874c493ef

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93

Виробник: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x22
Contact plating: tinned
Rated voltage: 300V
Operating temperature: -40...115°C
Current rating: 12A
Flammability rating: UL94V-0
Body material: thermoplastic
Number of pins: 22
Connector pinout layout: 1x22
Contacts pitch: 5mm
Wire cross-section: 2.5mm²
Wire size: 24AWG...12AWG
Electrical mounting: screw terminal
Mechanical mounting: for cable
Spatial orientation: straight
Locking system: friction lock
Colour: green
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
кількість в упаковці: 1 шт

товару немає в наявності

В кошику од. на суму грн.

Відгуки про товар

Написати відгук

Технічний опис TJ2271500000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x22, Contact plating: tinned, Rated voltage: 300V, Operating temperature: -40...115°C, Current rating: 12A, Flammability rating: UL94V-0, Body material: thermoplastic, Number of pins: 22, Connector pinout layout: 1x22, Contacts pitch: 5mm, Wire cross-section: 2.5mm2, Wire size: 24AWG...12AWG, Electrical mounting: screw terminal, Mechanical mounting: for cable, Spatial orientation: straight, Locking system: friction lock, Colour: green, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, кількість в упаковці: 1 шт.

Інші пропозиції TJ2271500000G

Назва	Виробник	Інформація	Доступність	Ціна
TJ2271500000G	Виробник : Amphenol Anytek	Description: TERM BLOCK PLUG 22POS STR 5MM Packaging: Bulk Features: Retention Latches (Non-Wire Side) Color: Green Mounting Type: Free Hanging (In-Line) Number of Positions: 22 Pitch: 0.197" (5.00mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw Current - IEC: 20A Number of Levels: 1 Wire Gauge or Range - AWG: 12-24 AWG Wire Gauge or Range - mm²: 0.34-2.5mm² Positions Per Level: 22 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 20 A Voltage - IEC: 300 V Voltage - UL: 300 V	товару немає в наявності	В кошику од. на суму грн.
TJ2271500000G	Виробник : Amphenol Anytek	Pluggable Terminal Blocks TB PLU PLU DOWN/SIDE	товару немає в наявності	В кошику од. на суму грн.
TJ2271500000G	Виробник : AMPHENOL ANYTEK	Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x22 Contact plating: tinned Rated voltage: 300V Operating temperature: -40...115°C Current rating: 12A Flammability rating: UL94V-0 Body material: thermoplastic Number of pins: 22 Connector pinout layout: 1x22 Contacts pitch: 5mm Wire cross-section: 2.5mm² Wire size: 24AWG...12AWG Electrical mounting: screw terminal Mechanical mounting: for cable Spatial orientation: straight Locking system: friction lock Colour: green Type of connector: pluggable terminal block Connector: plug Kind of connector: female	товару немає в наявності	В кошику од. на суму грн.
