TJ2271560000G

TJ2271560000G AMPHENOL ANYTEK


pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93 pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC8948FB4F6E0D6&compId=TJ5.06.pdf?ci_sign=5b6a26cf2f64de4371ed0ccb9ee39a8f30a2b079 Виробник: AMPHENOL ANYTEK
Category: Pluggable terminal blocks

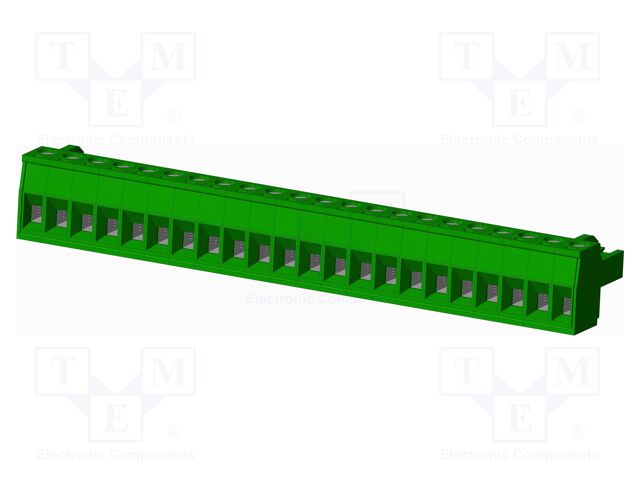

Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x22
Contact plating: tinned
Rated voltage: 300V
Operating temperature: -40...115°C
Current rating: 12A
Flammability rating: UL94V-0
Body material: thermoplastic
Number of pins: 22
Connector pinout layout: 1x22
Contacts pitch: 5mm
Wire cross-section: 2.5mm2
Wire size: 24AWG...12AWG
Electrical mounting: screw terminal
Mechanical mounting: for cable
Spatial orientation: straight
Locking system: friction lock
Colour: green
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
кількість в упаковці: 1 шт
товару немає в наявності

В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис TJ2271560000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x22, Contact plating: tinned, Rated voltage: 300V, Operating temperature: -40...115°C, Current rating: 12A, Flammability rating: UL94V-0, Body material: thermoplastic, Number of pins: 22, Connector pinout layout: 1x22, Contacts pitch: 5mm, Wire cross-section: 2.5mm2, Wire size: 24AWG...12AWG, Electrical mounting: screw terminal, Mechanical mounting: for cable, Spatial orientation: straight, Locking system: friction lock, Colour: green, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, кількість в упаковці: 1 шт.

Інші пропозиції TJ2271560000G

Фото Назва Виробник Інформація Доступність
Ціна
TJ2271560000G Виробник : Amphenol Anytek 85yhoLyurnPk.pdf Description: TERM BLOCK PLUG 22POS STR 5MM
Features: Retention Latches (Non-Wire Side)
Packaging: Bulk
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 22
Pitch: 0.197" (5.00mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw
Number of Levels: 1
Wire Gauge or Range - AWG: 12-24 AWG
Positions Per Level: 22
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 20 A
Voltage - UL: 300 V
товару немає в наявності
В кошику  од. на суму  грн.
TJ2271560000G Виробник : Amphenol Anytek SpAahtiA3xeG-1378975.pdf Pluggable Terminal Blocks TB PLU PLU UP/SIDE
товару немає в наявності
В кошику  од. на суму  грн.
TJ2271560000G TJ2271560000G Виробник : AMPHENOL ANYTEK pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93 pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC8948FB4F6E0D6&compId=TJ5.06.pdf?ci_sign=5b6a26cf2f64de4371ed0ccb9ee39a8f30a2b079 Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x22
Contact plating: tinned
Rated voltage: 300V
Operating temperature: -40...115°C
Current rating: 12A
Flammability rating: UL94V-0
Body material: thermoplastic
Number of pins: 22
Connector pinout layout: 1x22
Contacts pitch: 5mm
Wire cross-section: 2.5mm2
Wire size: 24AWG...12AWG
Electrical mounting: screw terminal
Mechanical mounting: for cable
Spatial orientation: straight
Locking system: friction lock
Colour: green
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
товару немає в наявності
В кошику  од. на суму  грн.
