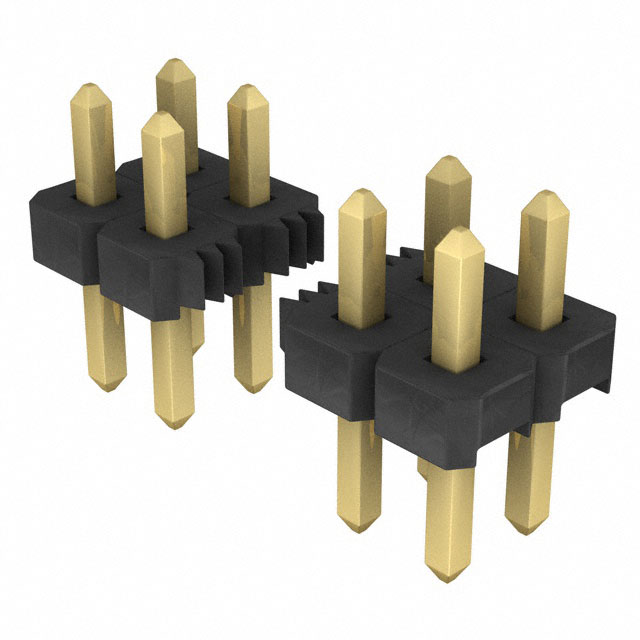

TLW-136-06-G-D Samtec Inc.
Виробник: Samtec Inc.Description: CONN HEADER VERT 72POS 2.54MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 5.2A per Contact
Mounting Type: Through Hole
Number of Positions: 72
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.135" (3.43mm)
Insulation Height: 0.060" (1.52mm)
Shrouding: Unshrouded
Overall Contact Length: 0.300" (7.62mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.105" (2.67mm)
на замовлення 2412 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 792.10 грн |
| 10+ | 705.20 грн |
| 25+ | 666.48 грн |
| 50+ | 602.75 грн |
| 100+ | 445.09 грн |
| 500+ | 391.88 грн |
| 1000+ | 282.07 грн |
| 2000+ | 240.62 грн |
Відгуки про товар
Написати відгук
Технічний опис TLW-136-06-G-D Samtec Inc.
Description: CONN HEADER VERT 72POS 2.54MM, Packaging: Bulk, Connector Type: Header, Current Rating (Amps): 5.2A per Contact, Mounting Type: Through Hole, Number of Positions: 72, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Gold, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.135" (3.43mm), Insulation Height: 0.060" (1.52mm), Shrouding: Unshrouded, Overall Contact Length: 0.300" (7.62mm), Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.105" (2.67mm).
