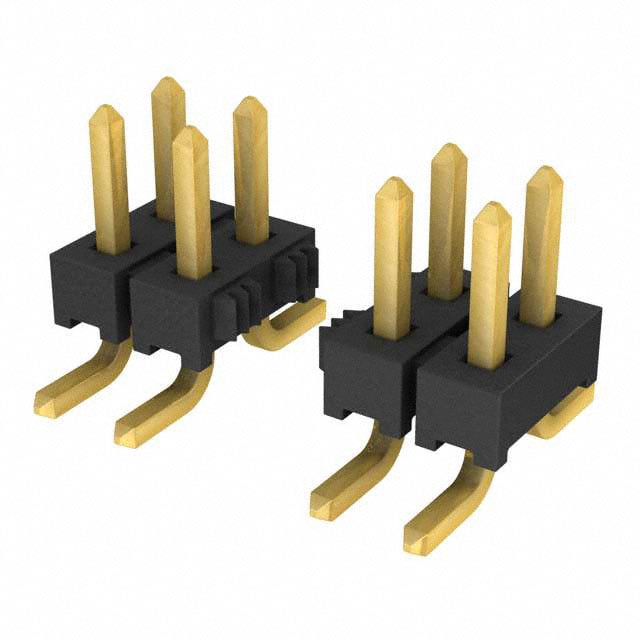

TMM-107-01-G-D-SM-P-TR

TMM-107-01-G-D-SM-P-TR Samtec Inc.

tmm-1xx-xx-xx-x-sm-xx-x-mkt.pdf
Виробник: Samtec Inc.
Description: 2MM TERMINAL STRIP
Number of Rows: 2
Number of Positions: 14
Mounting Type: Surface Mount
Current Rating (Amps): 3.2A per Contact
Connector Type: Header
Features: Pick and Place
Packaging: Cut Tape (CT)
Contact Length - Mating: 0.126" (3.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Unshrouded
Insulation Height: 0.059" (1.50mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Gold
Contact Finish Thickness - Mating: 20.0µin (0.51µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
на замовлення 538 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+202.22 грн
50+167.31 грн
100+142.10 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис TMM-107-01-G-D-SM-P-TR Samtec Inc.

Description: 2MM TERMINAL STRIP, Contact Finish - Mating: Gold, Pitch - Mating: 0.079" (2.00mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 14, Mounting Type: Surface Mount, Current Rating (Amps): 3.2A per Contact, Connector Type: Header, Features: Pick and Place, Packaging: Tape & Reel (TR), Contact Finish - Post: Gold, Contact Finish Thickness - Mating: 20.0µin (0.51µm), Contact Length - Mating: 0.126" (3.20mm), Row Spacing - Mating: 0.079" (2.00mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Unshrouded, Insulation Height: 0.059" (1.50mm), Contact Shape: Square, Part Status: Active.
