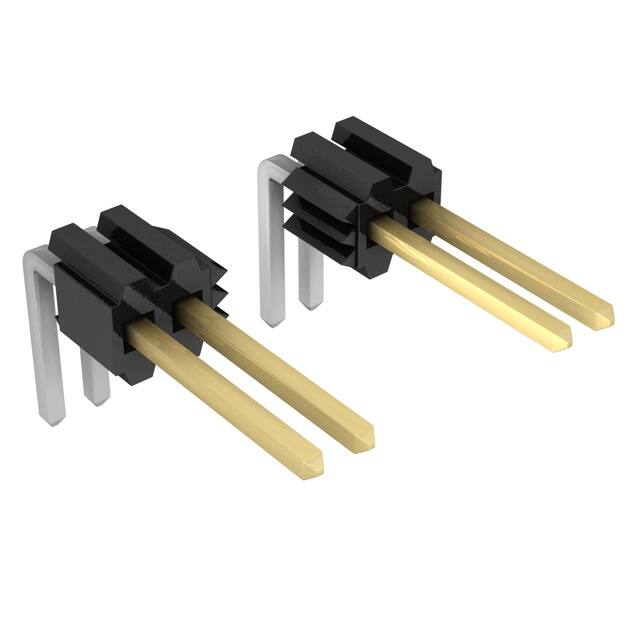

TMS-107-01-L-S-RA Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER R/A 7POS 1.27MM
Contact Length - Mating: 0.230" (5.84mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Unshrouded
Insulation Height: 0.098" (2.50mm)
Contact Length - Post: 0.140" (3.56mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board
Number of Rows: 1
Number of Positions: 7
Mounting Type: Through Hole, Right Angle
Current Rating (Amps): 5A per Contact
Connector Type: Header
Packaging: Bulk
| Кількість | Ціна |
|---|---|
| 3+ | 120.98 грн |
| 50+ | 90.87 грн |
| 100+ | 72.84 грн |
| 500+ | 58.21 грн |
| 1000+ | 46.02 грн |
Відгуки про товар
Написати відгук
Технічний опис TMS-107-01-L-S-RA Samtec Inc.
Description: CONN HEADER R/A 7POS 1.27MM, Contact Length - Mating: 0.230" (5.84mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Unshrouded, Insulation Height: 0.098" (2.50mm), Contact Length - Post: 0.140" (3.56mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board, Number of Rows: 1, Number of Positions: 7, Mounting Type: Through Hole, Right Angle, Current Rating (Amps): 5A per Contact, Connector Type: Header, Packaging: Bulk.
Інші пропозиції TMS-107-01-L-S-RA за ціною від 78.91 грн до 142.56 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TMS-107-01-L-S-RA | Samtec |
Headers & Wire Housings Through-hole Micro Header, 0.050 x 0.100 Pitch |
на замовлення 147 шт: термін постачання 21-30 дні (днів) |
|
| TMS-107-01-L-S-RA |
|
Виробник: Samtec
Headers & Wire Housings Through-hole Micro Header, 0.050 x 0.100 Pitch
Headers & Wire Housings Through-hole Micro Header, 0.050 x 0.100 Pitch
на замовлення 147 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 142.56 грн |
| 10+ | 127.68 грн |
| 100+ | 94.97 грн |
| 500+ | 78.91 грн |
