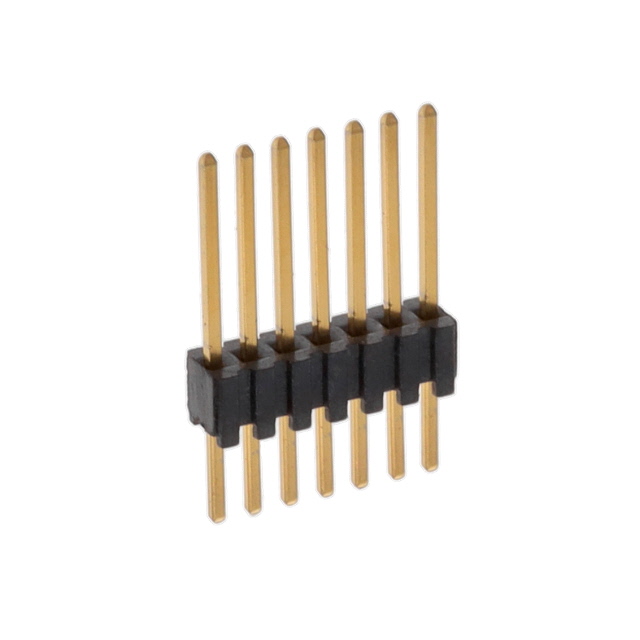

TMS-107-53-G-S Samtec

Description: .050" (1.27MM) MICRO HEADER, Number of Positions: 7, Mounting Type: Through Hole, Current Rating (Amps): 5A per Contact, Connector Type: Header, Packaging: Bulk, Contact Length - Mating: 0.285" (7.24mm), Insulation Material: Liquid Crystal Polymer (LCP), Overall Contact Length: 0.505" (12.83mm), Shrouding: Unshrouded, Insulation Height: 0.100" (2.54mm), Contact Length - Post: 0.120" (3.05mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board, Number of Rows: 1.
