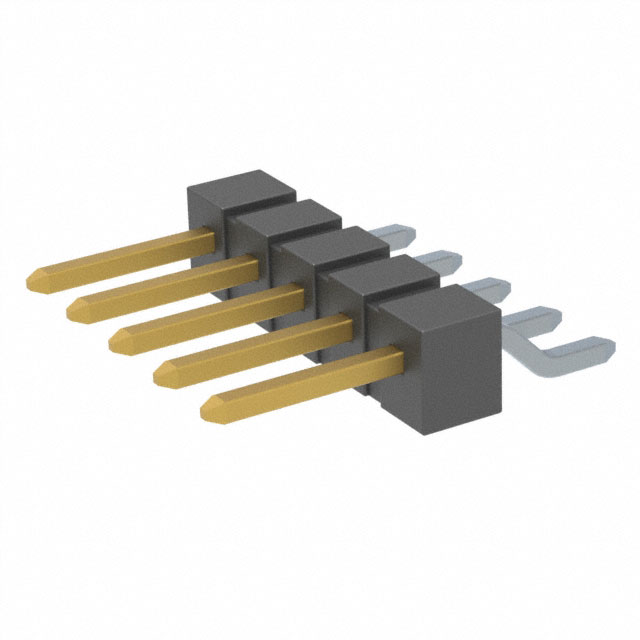

TSM-105-01-L-SH-K-TR Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER SMD R/A 5POS 2.54MM
Features: Pick and Place
Packaging: Cut Tape (CT)
Connector Type: Header
Mounting Type: Surface Mount, Right Angle
Number of Positions: 5
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.120" (3.05mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.230" (5.84mm)
| Кількість | Ціна без ПДВ |
|---|---|
| 3+ | 104.85 грн |
| 10+ | 85.63 грн |
| 100+ | 72.82 грн |
Відгуки про товар
Написати відгук
Технічний опис TSM-105-01-L-SH-K-TR Samtec Inc.
Description: CONN HEADER SMD R/A 5POS 2.54MM, Features: Pick and Place, Packaging: Tape & Reel (TR), Connector Type: Header, Mounting Type: Surface Mount, Right Angle, Number of Positions: 5, Number of Rows: 1, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.120" (3.05mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Contact Length - Mating: 0.230" (5.84mm).
Інші пропозиції TSM-105-01-L-SH-K-TR за ціною від 87.70 грн до 87.70 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||
|---|---|---|---|---|---|---|---|
 |
TSM-105-01-L-SH-K-TR | Samtec |
Headers & Wire Housings .100 Surface Mount Terminal Strip |
на замовлення 598 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. | ||
| TSM-105-01-L-SH-K-TR | SAMTEC |
Category: Board-to-board connectors Description: Connector: pin strips; pin header; male; PIN: 10; TSM; angled; 5.4A Contact plating: gold-plated Spatial orientation: angled Contact material: phosphor bronze Manufacturer series: TSM Flammability rating: UL94V-0 Connector variant: pick and place Contacts pitch: 2.54mm Number of pins: 10 Current rating: 5.4A Body colour: black Operating temperature: -55...125°C Overall length: 12.7mm Mechanical mounting: on PCBs Length: 12.7mm Body material: polymer Electrical mounting: SMT Type of connector: pin strips Kind of connector: male Height: 3.05mm Connector: pin header |
на замовлення 109 шт: термін постачання 14-30 дні (днів) |
|
| TSM-105-01-L-SH-K-TR |
|
Виробник: Samtec
Headers & Wire Housings .100 Surface Mount Terminal Strip
Headers & Wire Housings .100 Surface Mount Terminal Strip
на замовлення 598 шт:
термін постачання 21-30 дні (днів)
| TSM-105-01-L-SH-K-TR |
|
Виробник: SAMTEC
Category: Board-to-board connectors
Description: Connector: pin strips; pin header; male; PIN: 10; TSM; angled; 5.4A
Contact plating: gold-plated
Spatial orientation: angled
Contact material: phosphor bronze
Manufacturer series: TSM
Flammability rating: UL94V-0
Connector variant: pick and place
Contacts pitch: 2.54mm
Number of pins: 10
Current rating: 5.4A
Body colour: black
Operating temperature: -55...125°C
Overall length: 12.7mm
Mechanical mounting: on PCBs
Length: 12.7mm
Body material: polymer
Electrical mounting: SMT
Type of connector: pin strips
Kind of connector: male
Height: 3.05mm
Connector: pin header
Category: Board-to-board connectors
Description: Connector: pin strips; pin header; male; PIN: 10; TSM; angled; 5.4A
Contact plating: gold-plated
Spatial orientation: angled
Contact material: phosphor bronze
Manufacturer series: TSM
Flammability rating: UL94V-0
Connector variant: pick and place
Contacts pitch: 2.54mm
Number of pins: 10
Current rating: 5.4A
Body colour: black
Operating temperature: -55...125°C
Overall length: 12.7mm
Mechanical mounting: on PCBs
Length: 12.7mm
Body material: polymer
Electrical mounting: SMT
Type of connector: pin strips
Kind of connector: male
Height: 3.05mm
Connector: pin header
на замовлення 109 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 109+ | 87.70 грн |
