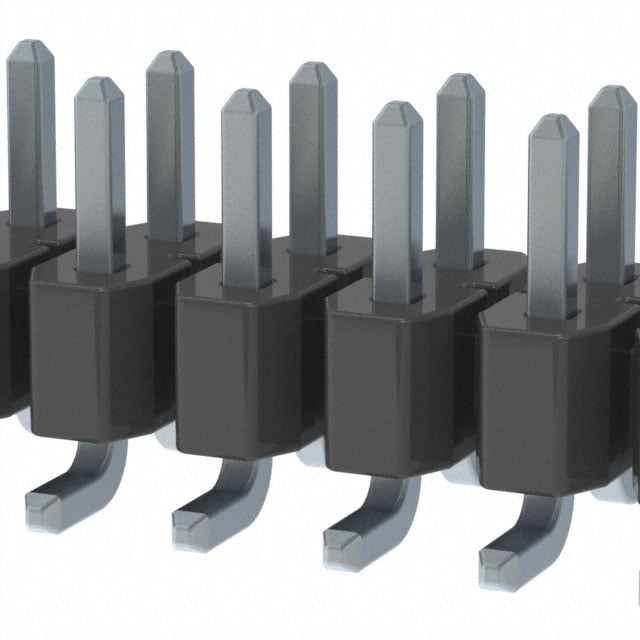

TSM-105-04-T-DV-P-TR Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER SMD 10POS 2.54MM
Contact Length - Mating: 0.120" (3.05mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Unshrouded
Insulation Height: 0.100" (2.54mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish - Mating: Tin
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 105°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 10
Mounting Type: Surface Mount
Connector Type: Header, Cuttable
Features: Pick and Place
Packaging: Tape & Reel (TR)
| Кількість | Ціна |
|---|---|
| 150+ | 66.66 грн |
| 750+ | 52.65 грн |
| 1050+ | 43.99 грн |
Відгуки про товар
Написати відгук
Технічний опис TSM-105-04-T-DV-P-TR Samtec Inc.
Description: CONN HEADER SMD 10POS 2.54MM, Contact Length - Mating: 0.120" (3.05mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Unshrouded, Insulation Height: 0.100" (2.54mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish - Mating: Tin, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 105°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 10, Mounting Type: Surface Mount, Connector Type: Header, Cuttable, Features: Pick and Place, Packaging: Tape & Reel (TR).
Інші пропозиції TSM-105-04-T-DV-P-TR за ціною від 47.27 грн до 102.65 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TSM-105-04-T-DV-P-TR | Samtec Inc. |
Description: CONN HEADER SMD 10POS 2.54MM Features: Pick and Place Packaging: Cut Tape (CT) Connector Type: Header, Cuttable Mounting Type: Surface Mount Number of Positions: 10 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 105°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Tin Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.100" (2.54mm) Shrouding: Unshrouded Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.100" (2.54mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 3455 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
TSM-105-04-T-DV-P-TR | Samtec |
Headers & Wire Housings .100" Surface Mount Terminal Strip |
на замовлення 208 шт: термін постачання 21-30 дні (днів) |
|
| TSM-105-04-T-DV-P-TR |
|
Виробник: Samtec Inc.
Description: CONN HEADER SMD 10POS 2.54MM
Features: Pick and Place
Packaging: Cut Tape (CT)
Connector Type: Header, Cuttable
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 10POS 2.54MM
Features: Pick and Place
Packaging: Cut Tape (CT)
Connector Type: Header, Cuttable
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 3455 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 5+ | 66.77 грн |
| TSM-105-04-T-DV-P-TR |
|
Виробник: Samtec
Headers & Wire Housings .100" Surface Mount Terminal Strip
Headers & Wire Housings .100" Surface Mount Terminal Strip
на замовлення 208 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 4+ | 102.65 грн |
| 50+ | 84.32 грн |
| 100+ | 62.36 грн |
| 900+ | 50.62 грн |
| 1950+ | 47.27 грн |
