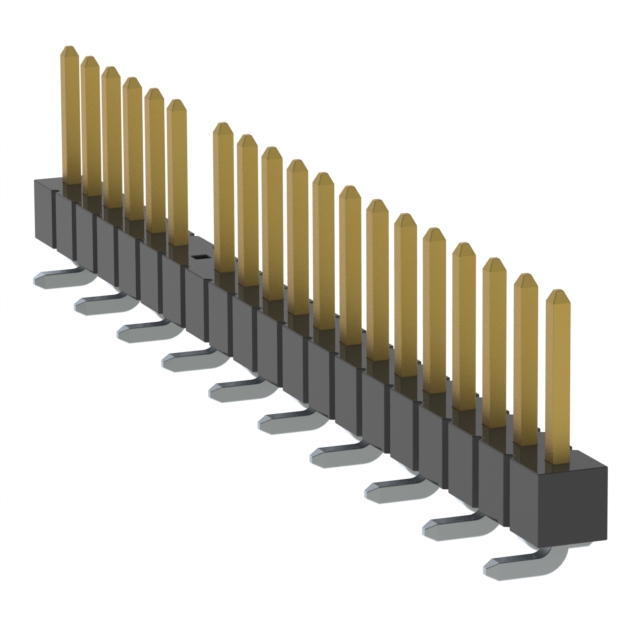

TSM-120-01-S-SV-014 Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER SMD 20POS 2.54MM
Packaging: Tube
Connector Type: Header, Cuttable
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: 19
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.230" (5.84mm)
Description: CONN HEADER SMD 20POS 2.54MM
Packaging: Tube
Connector Type: Header, Cuttable
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: 19
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.230" (5.84mm)
на замовлення 231 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 11+ | 296.27 грн |
Відгуки про товар
Написати відгук
Технічний опис TSM-120-01-S-SV-014 Samtec Inc.
Description: CONN HEADER SMD 20POS 2.54MM, Packaging: Tube, Connector Type: Header, Cuttable, Mounting Type: Surface Mount, Number of Positions: 20, Number of Rows: 1, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: 19, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Contact Shape: Square, Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Contact Length - Mating: 0.230" (5.84mm).
Інші пропозиції TSM-120-01-S-SV-014 за ціною від 432.26 грн до 539.33 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TSM-120-01-S-SV-014 | Виробник : Samtec Inc. |
Description: CONN HEADER SMD 20POS 2.54MM Packaging: Tube Connector Type: Header, Cuttable Mounting Type: Surface Mount Number of Positions: 20 Number of Rows: 1 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: 19 Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Contact Shape: Square Insulation Height: 0.100" (2.54mm) Shrouding: Unshrouded Insulation Material: Liquid Crystal Polymer (LCP) Contact Length - Mating: 0.230" (5.84mm) |
на замовлення 383 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
TSM-120-01-S-SV-014 | Виробник : Samtec |
 Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Top Entry SMD Tube |
товару немає в наявності |
|||||||||||
 |
TSM-120-01-S-SV-014 | Виробник : Samtec |
Headers & Wire Housings .100" Surface Mount Terminal Strip |
товару немає в наявності |
