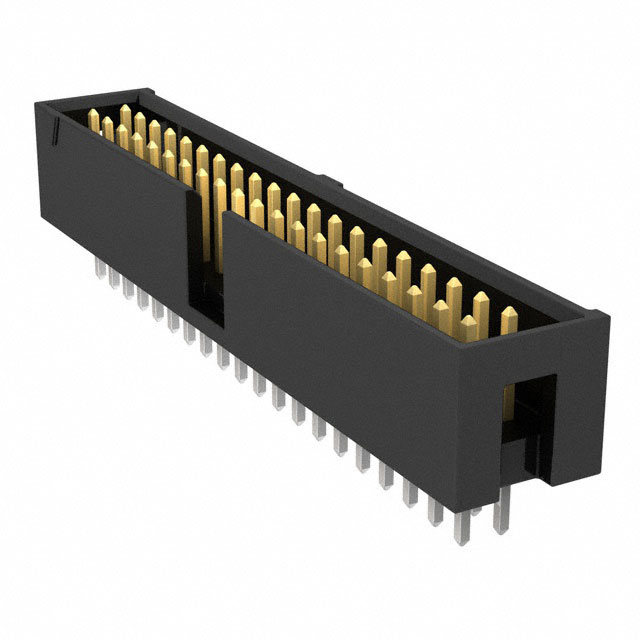

TSS-120-01-L-D Samtec Inc.
Виробник: Samtec Inc.Description: CONN HEADER VERT 40POS 2.54MM
Packaging: Bulk
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 40
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.115" (2.92mm)
Insulation Height: 0.350" (8.89mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.480" (12.19mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.250" (6.35mm)
на замовлення 3547 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 317.58 грн |
| 25+ | 276.47 грн |
| 50+ | 257.47 грн |
| 100+ | 229.74 грн |
| 500+ | 205.97 грн |
Відгуки про товар
Написати відгук
Технічний опис TSS-120-01-L-D Samtec Inc.
Description: CONN HEADER VERT 40POS 2.54MM, Packaging: Bulk, Features: Keying Slot, Connector Type: Header, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 40, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.115" (2.92mm), Insulation Height: 0.350" (8.89mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.480" (12.19mm), Insulation Material: Polybutylene Terephthalate (PBT), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.250" (6.35mm).
Інші пропозиції TSS-120-01-L-D за ціною від 230.32 грн до 380.27 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TSS-120-01-L-D | Виробник : Samtec |
Headers & Wire Housings .100" Shrouded Terminal Strip |
на замовлення 32 шт: термін постачання 21-30 дні (днів) |
|
||||||||||
 |
TSS-120-01-L-D | Виробник : SAMTEC |
Description: SAMTEC - TSS-120-01-L-D - Stiftleiste, Board-to-Board, 2.54 mm, 2 Reihe(n), 40 Kontakt(e), Durchsteckmontage tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 40Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board Steckverbindertyp: PCB-Stiftleiste Produktpalette: Flex Stack TSS productTraceability: No Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 2.54mm SVHC: No SVHC (21-Jan-2025) |
на замовлення 285 шт: термін постачання 21-31 дні (днів) |
|
