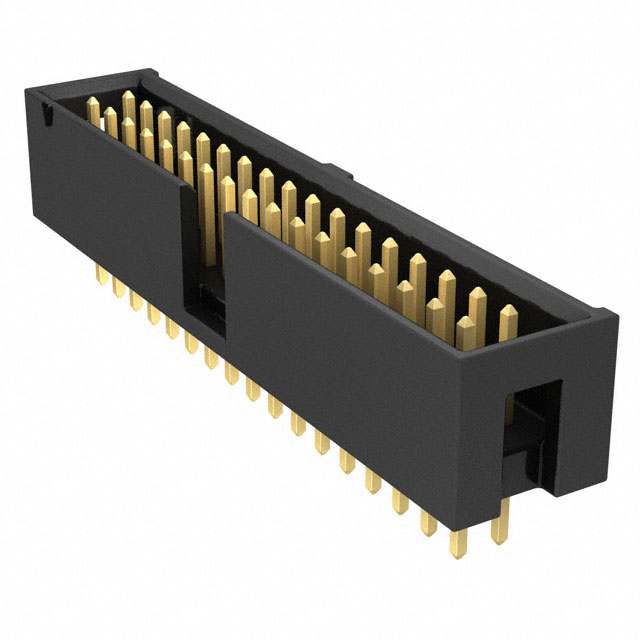

TST-117-01-G-D Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER VERT 34POS 2.54MM
Contact Length - Mating: 0.250" (6.35mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Overall Contact Length: 0.480" (12.19mm)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.350" (8.89mm)
Contact Length - Post: 0.115" (2.92mm)
Contact Shape: Square
Contact Finish - Post: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Cable/Wire
Number of Rows: 2
Number of Positions: 34
Mounting Type: Through Hole
Current Rating (Amps): 3.4A per Contact
Connector Type: Header
Features: Keying Slot
Packaging: Bulk
| Кількість | Ціна |
|---|---|
| 1+ | 326.01 грн |
| 25+ | 284.07 грн |
| 50+ | 264.38 грн |
| 100+ | 236.23 грн |
Відгуки про товар
Написати відгук
Технічний опис TST-117-01-G-D Samtec Inc.
Description: CONN HEADER VERT 34POS 2.54MM, Contact Length - Mating: 0.250" (6.35mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled, Overall Contact Length: 0.480" (12.19mm), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.350" (8.89mm), Contact Length - Post: 0.115" (2.92mm), Contact Shape: Square, Contact Finish - Post: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 34, Mounting Type: Through Hole, Current Rating (Amps): 3.4A per Contact, Connector Type: Header, Features: Keying Slot, Packaging: Bulk.
Інші пропозиції TST-117-01-G-D за ціною від 224.84 грн до 593.88 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TST-117-01-G-D | Samtec |
Headers & Wire Housings Shrouded PCB Headers, 0.100" pitch |
на замовлення 120 шт: термін постачання 21-30 дні (днів) |
|
||||||||||
|
|
TST-117-01-G-D | Samtec Inc. |
Description: CONN HEADER VERT 34POS 2.54MM Features: Keying Slot Packaging: Bulk Connector Type: Header Current Rating (Amps): 3.4A per Contact Mounting Type: Through Hole Number of Positions: 34 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Gold Contact Shape: Square Contact Length - Post: 0.115" (2.92mm) Insulation Height: 0.350" (8.89mm) Shrouding: Shrouded - 4 Wall Overall Contact Length: 0.480" (12.19mm) Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled Row Spacing - Mating: 0.100" (2.54mm) Contact Length - Mating: 0.250" (6.35mm) |
на замовлення 247 шт: термін постачання 21-31 дні (днів) |
|
| TST-117-01-G-D |
|
Виробник: Samtec
Headers & Wire Housings Shrouded PCB Headers, 0.100" pitch
Headers & Wire Housings Shrouded PCB Headers, 0.100" pitch
на замовлення 120 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 338.90 грн |
| 25+ | 301.93 грн |
| 50+ | 244.40 грн |
| 100+ | 232.53 грн |
| 500+ | 224.84 грн |
| TST-117-01-G-D |
|
Виробник: Samtec Inc.
Description: CONN HEADER VERT 34POS 2.54MM
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 3.4A per Contact
Mounting Type: Through Hole
Number of Positions: 34
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.115" (2.92mm)
Insulation Height: 0.350" (8.89mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.480" (12.19mm)
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.250" (6.35mm)
Description: CONN HEADER VERT 34POS 2.54MM
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 3.4A per Contact
Mounting Type: Through Hole
Number of Positions: 34
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.115" (2.92mm)
Insulation Height: 0.350" (8.89mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.480" (12.19mm)
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.250" (6.35mm)
на замовлення 247 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 593.88 грн |
| 25+ | 516.48 грн |
| 50+ | 480.69 грн |
| 100+ | 429.51 грн |
