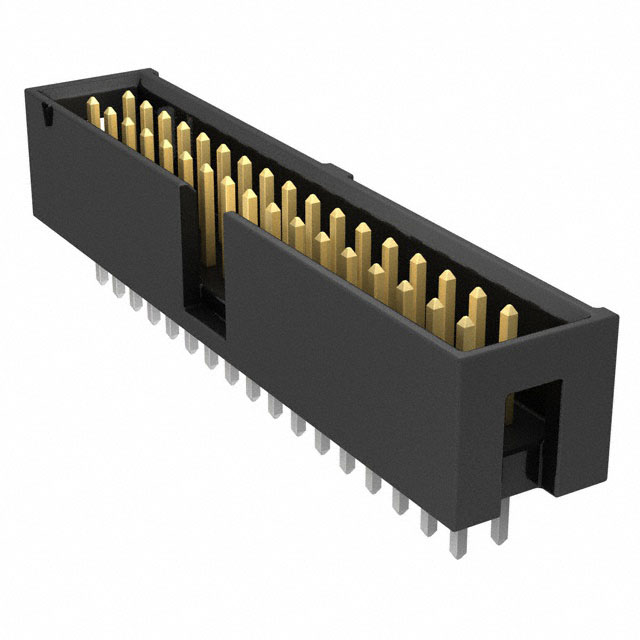

TST-117-01-L-D Samtec Inc.
Виробник: Samtec Inc.Description: CONN HEADER VERT 34POS 2.54MM
Packaging: Bulk
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3.4A per Contact
Mounting Type: Through Hole
Number of Positions: 34
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.115" (2.92mm)
Insulation Height: 0.350" (8.89mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.480" (12.19mm)
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.250" (6.35mm)
на замовлення 370 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 281.72 грн |
| 25+ | 245.01 грн |
| 50+ | 228.15 грн |
| 100+ | 203.79 грн |
Відгуки про товар
Написати відгук
Технічний опис TST-117-01-L-D Samtec Inc.
Description: CONN HEADER VERT 34POS 2.54MM, Packaging: Bulk, Features: Keying Slot, Connector Type: Header, Current Rating (Amps): 3.4A per Contact, Mounting Type: Through Hole, Number of Positions: 34, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.115" (2.92mm), Insulation Height: 0.350" (8.89mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.480" (12.19mm), Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.250" (6.35mm).
Інші пропозиції TST-117-01-L-D за ціною від 197.16 грн до 295.25 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TST-117-01-L-D | Виробник : Samtec |
Headers & Wire Housings Shrouded PCB Headers, 0.100" pitch |
на замовлення 145 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
 |
TST-117-01-L-D | Виробник : SAMTEC |
Description: SAMTEC - TST-117-01-L-D - Stiftleiste, Wannenstecker, Wire-to-Board, 2.54 mm, 2 Reihe(n), 34 Kontakt(e), Durchsteckmontage tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 34Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Produktpalette: Flex Stack TST productTraceability: No Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 2.54mm SVHC: No SVHC (23-Jan-2024) |
товару немає в наявності |
