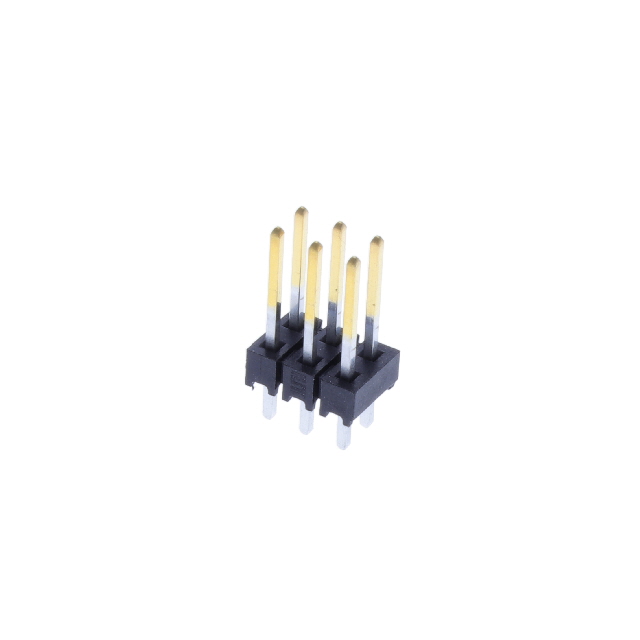

TSW-103-14-F-D Samtec
| Кількість | Ціна |
|---|---|
| 6+ | 57.47 грн |
| 10+ | 47.91 грн |
| 100+ | 37.00 грн |
| 500+ | 26.20 грн |
| 1000+ | 21.95 грн |
Відгуки про товар
Написати відгук
Технічний опис TSW-103-14-F-D Samtec
Description: CONN HEADER VERT 6POS 2.54MM, Contact Length - Mating: 0.320" (8.13mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polybutylene Terephthalate (PBT), Overall Contact Length: 0.530" (13.46mm), Shrouding: Unshrouded, Insulation Height: 0.100" (2.54mm), Contact Length - Post: 0.110" (2.79mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 6, Mounting Type: Through Hole, Connector Type: Header, Packaging: Bag.
Інші пропозиції TSW-103-14-F-D
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
TSW-103-14-F-D | Виробник : Samtec Inc. |
 Description: CONN HEADER VERT 6POS 2.54MMContact Length - Mating: 0.320" (8.13mm) Row Spacing - Mating: 0.100" (2.54mm) Insulation Material: Polybutylene Terephthalate (PBT) Overall Contact Length: 0.530" (13.46mm) Shrouding: Unshrouded Insulation Height: 0.100" (2.54mm) Contact Length - Post: 0.110" (2.79mm) Contact Shape: Square Part Status: Active Contact Finish - Post: Tin Contact Finish Thickness - Mating: 3.00µin (0.076µm) Contact Finish - Mating: Gold Pitch - Mating: 0.100" (2.54mm) Insulation Color: Black Contact Material: Phosphor Bronze Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Push-Pull Contact Type: Male Pin Operating Temperature: -55°C ~ 125°C Style: Board to Board or Cable Number of Rows: 2 Number of Positions: 6 Mounting Type: Through Hole Connector Type: Header Packaging: Bag |
на замовлення 1 шт: термін постачання 21-31 дні (днів) |
