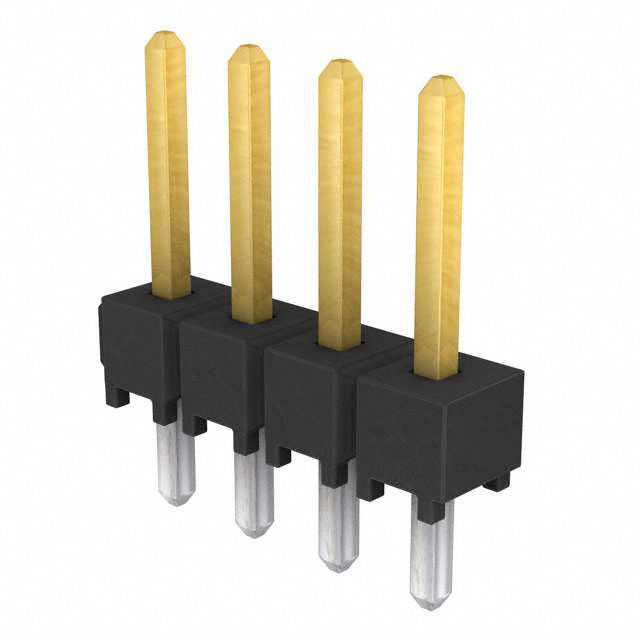

TSW-104-07-F-S SAMTEC
Виробник: SAMTEC
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 4; THT; straight; 1x4
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Number of pins: 4
Electrical mounting: THT
Spatial orientation: straight
Contacts pitch: 2.54mm
Connector pinout layout: 1x4
Contact plating: gold flash
Lead length: 2.54mm
Length of metal part: 5.84mm
Overall length: 10.92mm
| Кількість | Ціна без ПДВ |
|---|---|
| 32+ | 14.29 грн |
| 100+ | 11.86 грн |
Відгуки про товар
Написати відгук
Технічний опис TSW-104-07-F-S SAMTEC
Description: CONN HEADER VERT 4POS 2.54MM, Packaging: Bag, Connector Type: Header, Mounting Type: Through Hole, Number of Positions: 4, Number of Rows: 1, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.100" (2.54mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.430" (10.92mm), Insulation Material: Polybutylene Terephthalate (PBT), Contact Length - Mating: 0.230" (5.84mm).
Інші пропозиції TSW-104-07-F-S за ціною від 5.13 грн до 14.72 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TSW-104-07-F-S | Samtec Inc. |
Description: CONN HEADER VERT 4POS 2.54MM Packaging: Bag Connector Type: Header Mounting Type: Through Hole Number of Positions: 4 Number of Rows: 1 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 3.00µin (0.076µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.100" (2.54mm) Insulation Height: 0.100" (2.54mm) Shrouding: Unshrouded Overall Contact Length: 0.430" (10.92mm) Insulation Material: Polybutylene Terephthalate (PBT) Contact Length - Mating: 0.230" (5.84mm) |
на замовлення 24067 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
 |
TSW-104-07-F-S | Samtec |
Headers & Wire Housings Classic PCB Header Strips |
на замовлення 3969 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| TSW-104-07-F-S |
|
Виробник: Samtec Inc.
Description: CONN HEADER VERT 4POS 2.54MM
Packaging: Bag
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 4
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.100" (2.54mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Contact Length - Mating: 0.230" (5.84mm)
Description: CONN HEADER VERT 4POS 2.54MM
Packaging: Bag
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 4
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.100" (2.54mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Contact Length - Mating: 0.230" (5.84mm)
на замовлення 24067 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 22+ | 14.72 грн |
| 250+ | 12.20 грн |
| 500+ | 10.22 грн |
| 1000+ | 8.16 грн |
| 2500+ | 6.78 грн |
| 5000+ | 5.94 грн |
| 10000+ | 5.13 грн |
| TSW-104-07-F-S |
|
Виробник: Samtec
Headers & Wire Housings Classic PCB Header Strips
Headers & Wire Housings Classic PCB Header Strips
на замовлення 3969 шт:
термін постачання 21-30 дні (днів)
