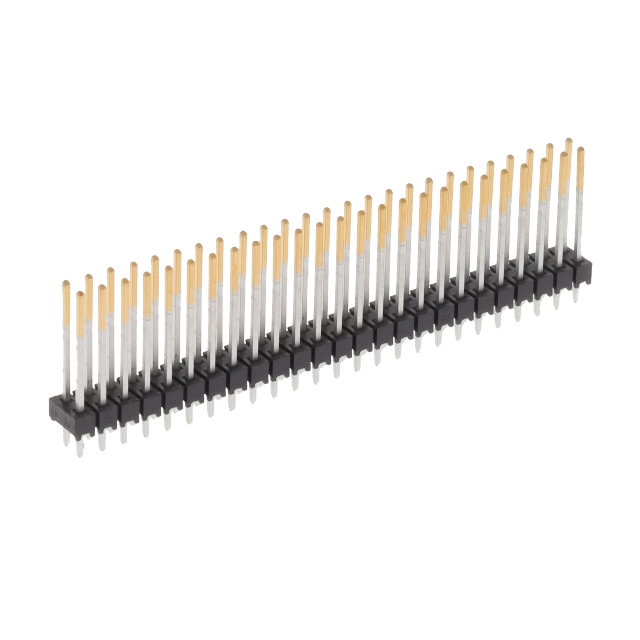

TSW-125-15-S-D Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HDR .100" 50POS
Contact Length - Mating: 0.520" (13.21mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Overall Contact Length: 0.730" (18.54mm)
Shrouding: Unshrouded
Insulation Height: 0.100" (2.54mm)
Contact Length - Post: 0.110" (2.79mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 50
Mounting Type: Through Hole
Connector Type: Header
Packaging: Bulk
| Кількість | Ціна |
|---|---|
| 1+ | 402.01 грн |
| 10+ | 381.63 грн |
| 25+ | 369.75 грн |
| 50+ | 326.28 грн |
| 100+ | 289.87 грн |
Відгуки про товар
Написати відгук
Технічний опис TSW-125-15-S-D Samtec Inc.
Description: CONN HDR .100" 50POS, Contact Length - Mating: 0.520" (13.21mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polybutylene Terephthalate (PBT), Overall Contact Length: 0.730" (18.54mm), Shrouding: Unshrouded, Insulation Height: 0.100" (2.54mm), Contact Length - Post: 0.110" (2.79mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 50, Mounting Type: Through Hole, Connector Type: Header, Packaging: Bulk.
Інші пропозиції TSW-125-15-S-D за ціною від 478.35 грн до 843.68 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TSW-125-15-S-D | Samtec Inc. |
Description: CONN HDR .100" 50POS Contact Length - Mating: 0.520" (13.21mm) Row Spacing - Mating: 0.100" (2.54mm) Insulation Material: Polybutylene Terephthalate (PBT) Overall Contact Length: 0.730" (18.54mm) Shrouding: Unshrouded Insulation Height: 0.100" (2.54mm) Contact Length - Post: 0.110" (2.79mm) Contact Shape: Square Contact Finish - Post: Tin Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Mating: Gold Pitch - Mating: 0.100" (2.54mm) Insulation Color: Black Contact Material: Phosphor Bronze Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Push-Pull Contact Type: Male Pin Operating Temperature: -55°C ~ 125°C Style: Board to Board or Cable Number of Rows: 2 Number of Positions: 50 Mounting Type: Through Hole Connector Type: Header Packaging: Bulk |
на замовлення 1301 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
TSW-125-15-S-D | Samtec |
Headers & Wire Housings Classic PCB Header Strips, 0.100 pitch |
на замовлення 12 шт: термін постачання 21-30 дні (днів) |
|
| TSW-125-15-S-D |
|
Виробник: Samtec Inc.
Description: CONN HDR .100" 50POS
Contact Length - Mating: 0.520" (13.21mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Overall Contact Length: 0.730" (18.54mm)
Shrouding: Unshrouded
Insulation Height: 0.100" (2.54mm)
Contact Length - Post: 0.110" (2.79mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 50
Mounting Type: Through Hole
Connector Type: Header
Packaging: Bulk
Description: CONN HDR .100" 50POS
Contact Length - Mating: 0.520" (13.21mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Overall Contact Length: 0.730" (18.54mm)
Shrouding: Unshrouded
Insulation Height: 0.100" (2.54mm)
Contact Length - Post: 0.110" (2.79mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 50
Mounting Type: Through Hole
Connector Type: Header
Packaging: Bulk
на замовлення 1301 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 714.43 грн |
| 10+ | 677.43 грн |
| 25+ | 656.82 грн |
| 50+ | 578.86 грн |
| 100+ | 478.35 грн |
| TSW-125-15-S-D |
|
Виробник: Samtec
Headers & Wire Housings Classic PCB Header Strips, 0.100 pitch
Headers & Wire Housings Classic PCB Header Strips, 0.100 pitch
на замовлення 12 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 843.68 грн |
| 10+ | 795.15 грн |
| 100+ | 581.48 грн |
| 250+ | 491.26 грн |
