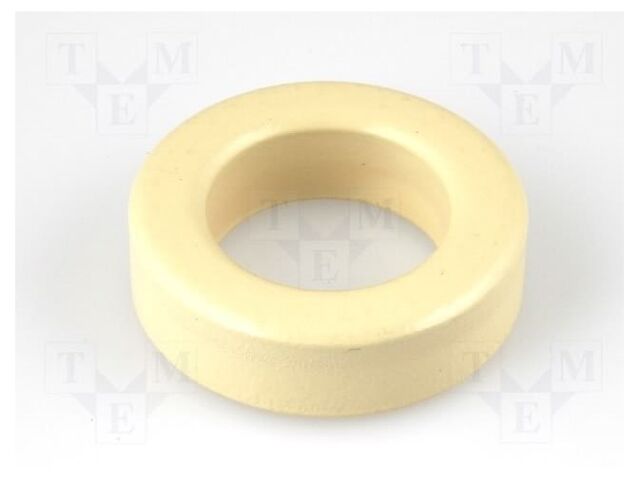

TX42/26/13-3E25 FERROXCUBE
Виробник: FERROXCUBE
Category: Ring ferrites
Description: Ferrite: toroidal; Øint: 25.9mm; Øout: 42.1mm; Core mat: 3E25
Ferrite application: impulse transformers; RFI filters; wideband transformers
Design: plastic sheath
Ferrite features: rounded edges
Effective core volume (Ve): 9860mm3
Inductance factor AL: 6425nH
Effective core cross-section (Ae): 95.8mm2
Height: 13mm
Internal diameter: 25.9mm
Outside diameter: 42.1mm
Core material: 3E25
Type of ferrite: toroidal
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 280.37 грн |
| 5+ | 223.03 грн |
| 28+ | 204.79 грн |
Відгуки про товар
Написати відгук
Технічний опис TX42/26/13-3E25 FERROXCUBE
Category: Ring ferrites, Description: Ferrite: toroidal; Øint: 25.9mm; Øout: 42.1mm; Core mat: 3E25, Ferrite application: impulse transformers; RFI filters; wideband transformers, Design: plastic sheath, Ferrite features: rounded edges, Effective core volume (Ve): 9860mm3, Inductance factor AL: 6425nH, Effective core cross-section (Ae): 95.8mm2, Height: 13mm, Internal diameter: 25.9mm, Outside diameter: 42.1mm, Core material: 3E25, Type of ferrite: toroidal.
Інші пропозиції TX42/26/13-3E25
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
| TX42/26/13-3E25 | Ferroxcube |
Description: Ferrite Misc Packaging: Bulk Tolerance: ±25% Material: 3E25 Diameter: 1.656" (42.05mm) Height: 0.512" (13.00mm) Core Type: Toroid Supplier Device Package: TX 42 x 26 x 13 Inductance Factor (Al): 6.425 µH Initial Permeability (µi): 5500 Finish: Epoxy Gap: Ungapped Core Factor (ΣI/A) mm⁻¹: 1.076 Effective Length (le) mm: 103.0 Effective Area (Ae) mm²: 95.8 Effective Magnetic Volume (Ve) mm³: 9860.0 |
товару немає в наявності |
Мінімальне замовлення: 840 шт В кошику од. на суму грн. |
| TX42/26/13-3E25 |
|
Виробник: Ferroxcube
Description: Ferrite Misc
Packaging: Bulk
Tolerance: ±25%
Material: 3E25
Diameter: 1.656" (42.05mm)
Height: 0.512" (13.00mm)
Core Type: Toroid
Supplier Device Package: TX 42 x 26 x 13
Inductance Factor (Al): 6.425 µH
Initial Permeability (µi): 5500
Finish: Epoxy
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 1.076
Effective Length (le) mm: 103.0
Effective Area (Ae) mm²: 95.8
Effective Magnetic Volume (Ve) mm³: 9860.0
Description: Ferrite Misc
Packaging: Bulk
Tolerance: ±25%
Material: 3E25
Diameter: 1.656" (42.05mm)
Height: 0.512" (13.00mm)
Core Type: Toroid
Supplier Device Package: TX 42 x 26 x 13
Inductance Factor (Al): 6.425 µH
Initial Permeability (µi): 5500
Finish: Epoxy
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 1.076
Effective Length (le) mm: 103.0
Effective Area (Ae) mm²: 95.8
Effective Magnetic Volume (Ve) mm³: 9860.0
