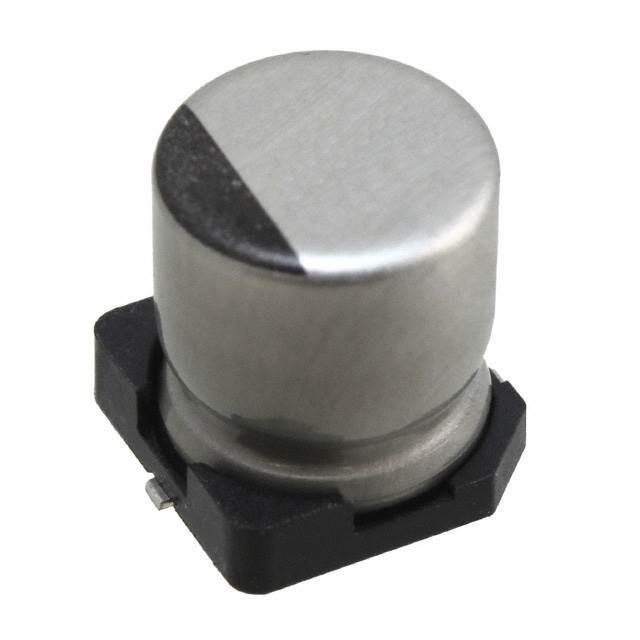

UCB1V220MCL1GS Nichicon
Виробник: Nichicon
Description: CAP ALUM 22UF 20% 35V SMD
Ripple Current @ High Frequency: 63 mA @ 10 kHz
Ripple Current @ Low Frequency: 42 mA @ 120 Hz
Voltage - Rated: 35 V
Capacitance: 22 µF
Height - Seated (Max): 0.276" (7.00mm)
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Lifetime @ Temp.: 7000 Hrs @ 105°C
Applications: General Purpose
Operating Temperature: -25°C ~ 105°C
Mounting Type: Surface Mount
Polarization: Polar
Size / Dimension: 0.248" Dia (6.30mm)
Package / Case: Radial, Can - SMD
Tolerance: ±20%
Packaging: Tape & Reel (TR)
| Кількість | Ціна |
|---|---|
| 1000+ | 13.14 грн |
| 2000+ | 11.73 грн |
Відгуки про товар
Написати відгук
Технічний опис UCB1V220MCL1GS Nichicon
Description: CAP ALUM 22UF 20% 35V SMD, Ripple Current @ High Frequency: 63 mA @ 10 kHz, Ripple Current @ Low Frequency: 42 mA @ 120 Hz, Voltage - Rated: 35 V, Capacitance: 22 µF, Height - Seated (Max): 0.276" (7.00mm), Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm), Lifetime @ Temp.: 7000 Hrs @ 105°C, Applications: General Purpose, Operating Temperature: -25°C ~ 105°C, Mounting Type: Surface Mount, Polarization: Polar, Size / Dimension: 0.248" Dia (6.30mm), Package / Case: Radial, Can - SMD, Tolerance: ±20%, Packaging: Tape & Reel (TR).
Інші пропозиції UCB1V220MCL1GS за ціною від 8.64 грн до 47.88 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
UCB1V220MCL1GS | Виробник : Nichicon |
Description: CAP ALUM 22UF 20% 35V SMD Ripple Current @ High Frequency: 63 mA @ 10 kHz Ripple Current @ Low Frequency: 42 mA @ 120 Hz Voltage - Rated: 35 V Capacitance: 22 µF Height - Seated (Max): 0.276" (7.00mm) Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm) Lifetime @ Temp.: 7000 Hrs @ 105°C Applications: General Purpose Operating Temperature: -25°C ~ 105°C Mounting Type: Surface Mount Polarization: Polar Size / Dimension: 0.248" Dia (6.30mm) Package / Case: Radial, Can - SMD Tolerance: ±20% Packaging: Cut Tape (CT) |
на замовлення 2940 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
 |
UCB1V220MCL1GS | Виробник : Nichicon |
Aluminium Electrolytic Capacitors - SMD 35volts 22uF AEC-Q200 |
на замовлення 786 шт: термін постачання 21-30 дні (днів) |
|
