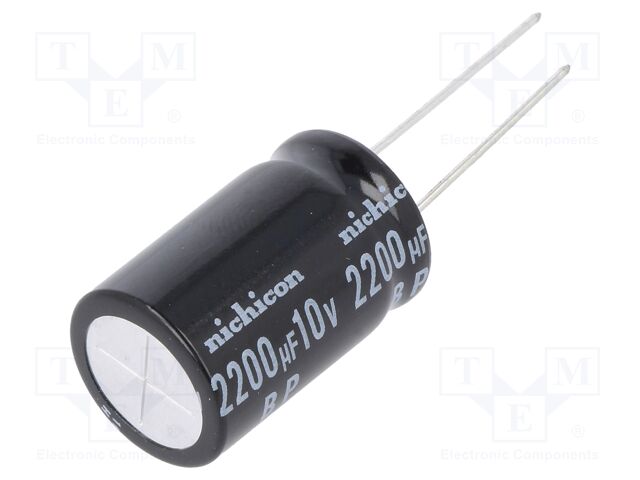

UEP1A222MHD NICHICON
Виробник: NICHICON
Category: THT audio electrolytic capacitors
Description: Capacitor: electrolytic; bipolar; THT; 2200uF; 10VDC; Ø10x20mm
Type of capacitor: electrolytic
Kind of capacitor: bipolar
Mounting: THT
Capacitance: 2.2mF
Operating voltage: 10V DC
Body dimensions: Ø10x20mm
Terminal pitch: 5mm
Tolerance: ±20%
Operating temperature: -55...105°C
Nominal life: 1000h
Height: 20mm
Diameter: 10mm
Capacitor application: audio equipment
Manufacturer series: UEP
| Кількість | Ціна без ПДВ |
|---|---|
| 3+ | 199.60 грн |
| 10+ | 135.86 грн |
| 50+ | 109.02 грн |
| 200+ | 87.22 грн |
Відгуки про товар
Написати відгук
Технічний опис UEP1A222MHD NICHICON
Description: CAP ALUM 2200UF 20% 10V RADIAL, Tolerance: ±20%, Packaging: Bulk, Package / Case: Radial, Can, Size / Dimension: 0.630" Dia (16.00mm), Polarization: Bi-Polar, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 105°C, Applications: General Purpose, Lead Spacing: 0.295" (7.50mm), Lifetime @ Temp.: 1000 Hrs @ 105°C, Height - Seated (Max): 1.063" (27.00mm), Part Status: Not For New Designs, Capacitance: 2200 µF, Voltage - Rated: 10 V, Ripple Current @ Low Frequency: 910 mA @ 120 Hz, Ripple Current @ High Frequency: 1.0465 A @ 10 kHz.
Інші пропозиції UEP1A222MHD за ціною від 145.64 грн до 213.98 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UEP1A222MHD | Nichicon |
Description: CAP ALUM 2200UF 20% 10V RADIAL Tolerance: ±20% Packaging: Bulk Package / Case: Radial, Can Size / Dimension: 0.630" Dia (16.00mm) Polarization: Bi-Polar Mounting Type: Through Hole Operating Temperature: -55°C ~ 105°C Applications: General Purpose Lead Spacing: 0.295" (7.50mm) Lifetime @ Temp.: 1000 Hrs @ 105°C Height - Seated (Max): 1.063" (27.00mm) Part Status: Not For New Designs Capacitance: 2200 µF Voltage - Rated: 10 V Ripple Current @ Low Frequency: 910 mA @ 120 Hz Ripple Current @ High Frequency: 1.0465 A @ 10 kHz |
на замовлення 50 шт: термін постачання 21-31 дні (днів) |
|
||||||
 |
UEP1A222MHD | Nichicon |
Aluminium Electrolytic Capacitors - Leaded 10volts 2200uF 20% |
на замовлення 139 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| UEP1A222MHD |
|
Виробник: Nichicon
Description: CAP ALUM 2200UF 20% 10V RADIAL
Tolerance: ±20%
Packaging: Bulk
Package / Case: Radial, Can
Size / Dimension: 0.630" Dia (16.00mm)
Polarization: Bi-Polar
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 105°C
Applications: General Purpose
Lead Spacing: 0.295" (7.50mm)
Lifetime @ Temp.: 1000 Hrs @ 105°C
Height - Seated (Max): 1.063" (27.00mm)
Part Status: Not For New Designs
Capacitance: 2200 µF
Voltage - Rated: 10 V
Ripple Current @ Low Frequency: 910 mA @ 120 Hz
Ripple Current @ High Frequency: 1.0465 A @ 10 kHz
Description: CAP ALUM 2200UF 20% 10V RADIAL
Tolerance: ±20%
Packaging: Bulk
Package / Case: Radial, Can
Size / Dimension: 0.630" Dia (16.00mm)
Polarization: Bi-Polar
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 105°C
Applications: General Purpose
Lead Spacing: 0.295" (7.50mm)
Lifetime @ Temp.: 1000 Hrs @ 105°C
Height - Seated (Max): 1.063" (27.00mm)
Part Status: Not For New Designs
Capacitance: 2200 µF
Voltage - Rated: 10 V
Ripple Current @ Low Frequency: 910 mA @ 120 Hz
Ripple Current @ High Frequency: 1.0465 A @ 10 kHz
на замовлення 50 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 213.98 грн |
| 10+ | 166.88 грн |
| 50+ | 145.64 грн |
| UEP1A222MHD |
|
Виробник: Nichicon
Aluminium Electrolytic Capacitors - Leaded 10volts 2200uF 20%
Aluminium Electrolytic Capacitors - Leaded 10volts 2200uF 20%
на замовлення 139 шт:
термін постачання 21-30 дні (днів)
