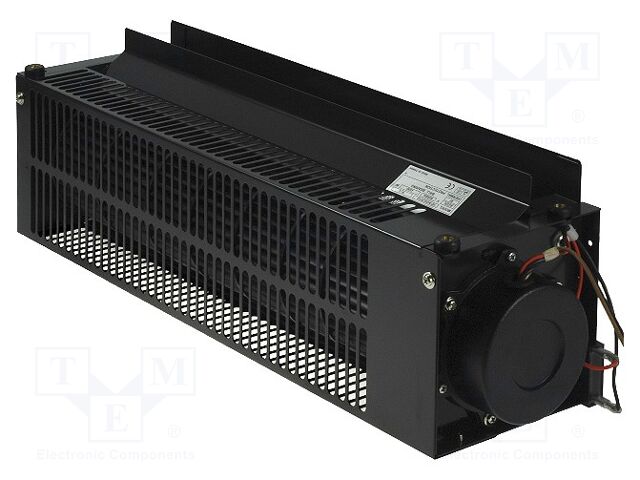

UF9439CBP23H-L Mechatronics Fan Group
Виробник: Mechatronics Fan Group
Description: FAN BLWR CF 230VAC 510X150X130MM
Power (Watts): 50.0W
Features: Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
Packaging: Bulk
Voltage - Rated: 230VAC
Size / Dimension: Rectangular - 510mm L x 130mm H
Bearing Type: Ball
RPM: 1600 RPM
Air Flow: 318.0 CFM (8.90m³/min)
Width: 125.0mm
Weight: 7.7 lbs (3.5 kg)
Operating Temperature: -40 ~ 158°F (-40 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, TUV
Fan Type: Blower, Cross Flow
Noise: 53.0dB(A)
Static Pressure: 0.180 in H2O (44.8 Pa)
Part Status: Active
Відгуки про товар
Написати відгук
Технічний опис UF9439CBP23H-L Mechatronics Fan Group
Category: AC230V Fans, Description: Fan: AC; cross flow; 230VAC; 510x150x130mm; 450.5m3/h; 48dBA; ball, Type of fan: AC, Kind of fan: cross flow, Supply voltage: 230V AC, Fan dimensions: 510x150x130mm, Power consumption: 43W, Current rating: 0.2A, Fan efficiency: 450.5m3/h, Noise level: 48dBA, Kind of Bearing: ball, Rotational rate/speed: 1400rpm, Frequency: 50Hz, Min. insulation resistance: 0.1GΩ, Impeller material: thermoplastic, Enclosure material: metal, Leads: leads x2, Operating temperature: -40...70°C, Fan motor: with starting capacitor, Static pressure: 3.5mm H2O.
Інші пропозиції UF9439CBP23H-L
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
 |
UF9439CBP23H-L | FULLTECH |
Category: AC230V Fans Description: Fan: AC; cross flow; 230VAC; 510x150x130mm; 450.5m3/h; 48dBA; ball Type of fan: AC Kind of fan: cross flow Supply voltage: 230V AC Fan dimensions: 510x150x130mm Power consumption: 43W Current rating: 0.2A Fan efficiency: 450.5m3/h Noise level: 48dBA Kind of Bearing: ball Rotational rate/speed: 1400rpm Frequency: 50Hz Min. insulation resistance: 0.1GΩ Impeller material: thermoplastic Enclosure material: metal Leads: leads x2 Operating temperature: -40...70°C Fan motor: with starting capacitor Static pressure: 3.5mm H2O |
товару немає в наявності |
В кошику од. на суму грн. |
| UF9439CBP23H-L |
|
Виробник: FULLTECH
Category: AC230V Fans
Description: Fan: AC; cross flow; 230VAC; 510x150x130mm; 450.5m3/h; 48dBA; ball
Type of fan: AC
Kind of fan: cross flow
Supply voltage: 230V AC
Fan dimensions: 510x150x130mm
Power consumption: 43W
Current rating: 0.2A
Fan efficiency: 450.5m3/h
Noise level: 48dBA
Kind of Bearing: ball
Rotational rate/speed: 1400rpm
Frequency: 50Hz
Min. insulation resistance: 0.1GΩ
Impeller material: thermoplastic
Enclosure material: metal
Leads: leads x2
Operating temperature: -40...70°C
Fan motor: with starting capacitor
Static pressure: 3.5mm H2O
Category: AC230V Fans
Description: Fan: AC; cross flow; 230VAC; 510x150x130mm; 450.5m3/h; 48dBA; ball
Type of fan: AC
Kind of fan: cross flow
Supply voltage: 230V AC
Fan dimensions: 510x150x130mm
Power consumption: 43W
Current rating: 0.2A
Fan efficiency: 450.5m3/h
Noise level: 48dBA
Kind of Bearing: ball
Rotational rate/speed: 1400rpm
Frequency: 50Hz
Min. insulation resistance: 0.1GΩ
Impeller material: thermoplastic
Enclosure material: metal
Leads: leads x2
Operating temperature: -40...70°C
Fan motor: with starting capacitor
Static pressure: 3.5mm H2O
