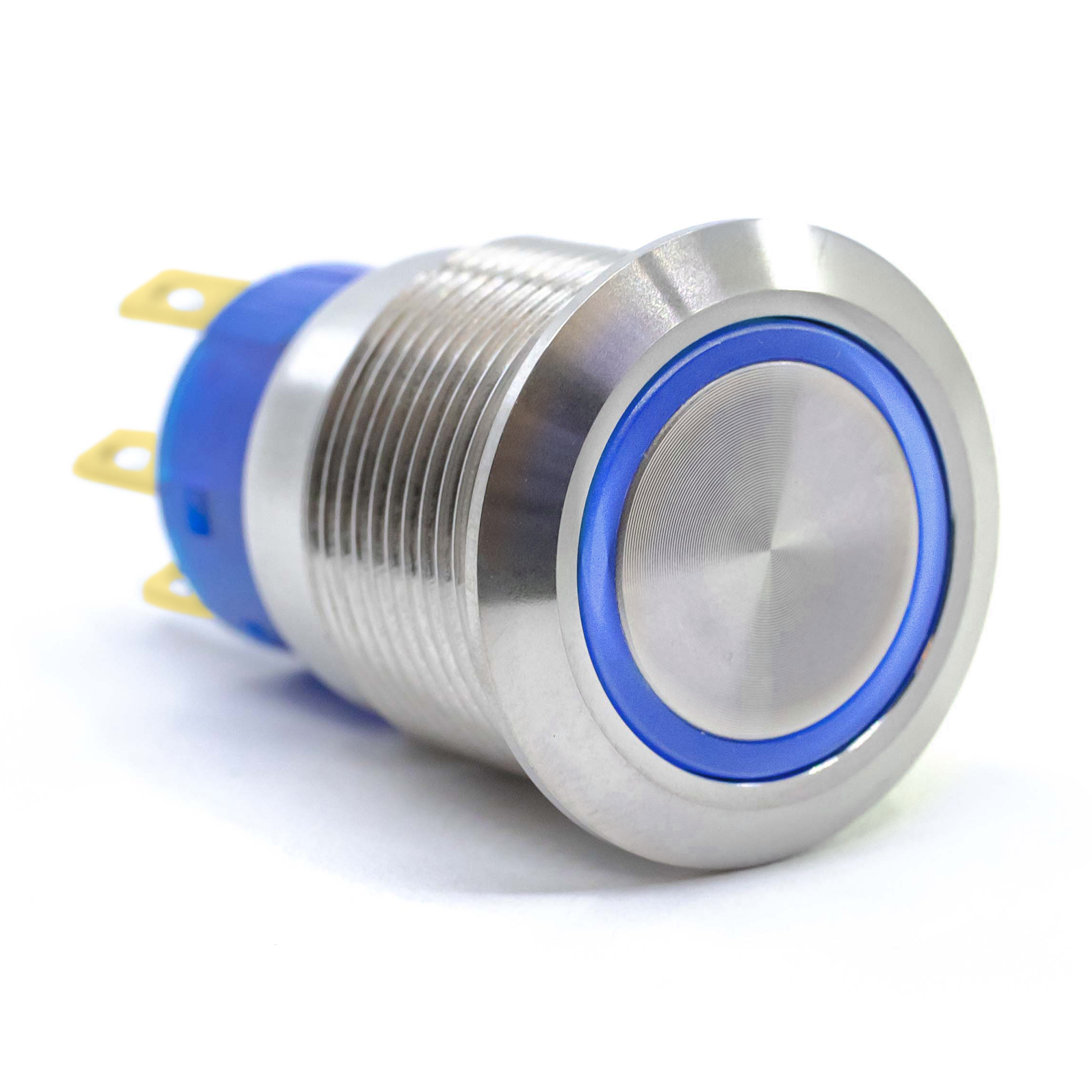

ULV4F2HSSG346 E-Switch
Виробник: E-SwitchDescription: SWITCH PUSHBUTTON DPDT 3A 125V
Packaging: Bulk
Current Rating (Amps): 3A (AC)
Mounting Type: Panel Mount, Front
Circuit: DPDT
Type: Anti-Vandal, Illuminated
Switch Function: On-Mom
Operating Temperature: -20°C ~ 55°C
Termination Style: Solder, Quick Connect - 0.110" (2.8mm)
Illumination Type, Color: LED, Blue
Illumination Voltage (Nominal): 110 VAC
Actuator Type: Round, Button, Flush
Ingress Protection: IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions: Circular - 19.20mm Dia
Color - Actuator/Cap: Silver
Part Status: Active
Voltage Rating - AC: 125 V
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис ULV4F2HSSG346 E-Switch
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; DPDT; 3A/250VAC; IP67; ON-(ON), Body material: stainless steel, Contacts configuration: DPDT, Button shape: flat; round, Contact material: gold, IP rating: IP67, Illumination: LED; ring, Switching method: ON-(ON), Mounting: on panel, Body colour: silver, Actuator colour: silver, Button material: stainless steel, Manufacturer series: ULV4, Type of switch: vandal resistant, Operating temperature: -20...55°C, Panel thickness: 1...10mm, Leads dimensions: 2.8x0.5mm, Key stroke: 3.2mm, Mounting hole diameter: Ø19mm, Body dimensions: Ø22x27.5mm, Max. contact resistance:: 50mΩ, Stable positions number: 1, Number of positions: 2, AC contacts rating @R: 3A / 250V AC, Operating Force: 3.5N, Illumination voltage: 110V, Electrical life: 50000 cycles, Mechanical durability: 1000000 cycles, Min. insulation resistance: 1GΩ, Button marking: blank, Backlight colour: blue, Leads: for soldering.
Інші пропозиції ULV4F2HSSG346
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
ULV4F2HSSG346 | Виробник : E-Switch |
Pushbutton Switches Anti-vandal, DPDT, On-(On), Panel Mount, Front, Silver, LED, Blue, IP67 |
товару немає в наявності |
|
| ULV4F2HSSG346 | Виробник : E-SWITCH |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; DPDT; 3A/250VAC; IP67; ON-(ON) Body material: stainless steel Contacts configuration: DPDT Button shape: flat; round Contact material: gold IP rating: IP67 Illumination: LED; ring Switching method: ON-(ON) Mounting: on panel Body colour: silver Actuator colour: silver Button material: stainless steel Manufacturer series: ULV4 Type of switch: vandal resistant Operating temperature: -20...55°C Panel thickness: 1...10mm Leads dimensions: 2.8x0.5mm Key stroke: 3.2mm Mounting hole diameter: Ø19mm Body dimensions: Ø22x27.5mm Max. contact resistance:: 50mΩ Stable positions number: 1 Number of positions: 2 AC contacts rating @R: 3A / 250V AC Operating Force: 3.5N Illumination voltage: 110V Electrical life: 50000 cycles Mechanical durability: 1000000 cycles Min. insulation resistance: 1GΩ Button marking: blank Backlight colour: blue Leads: for soldering |
товару немає в наявності |
