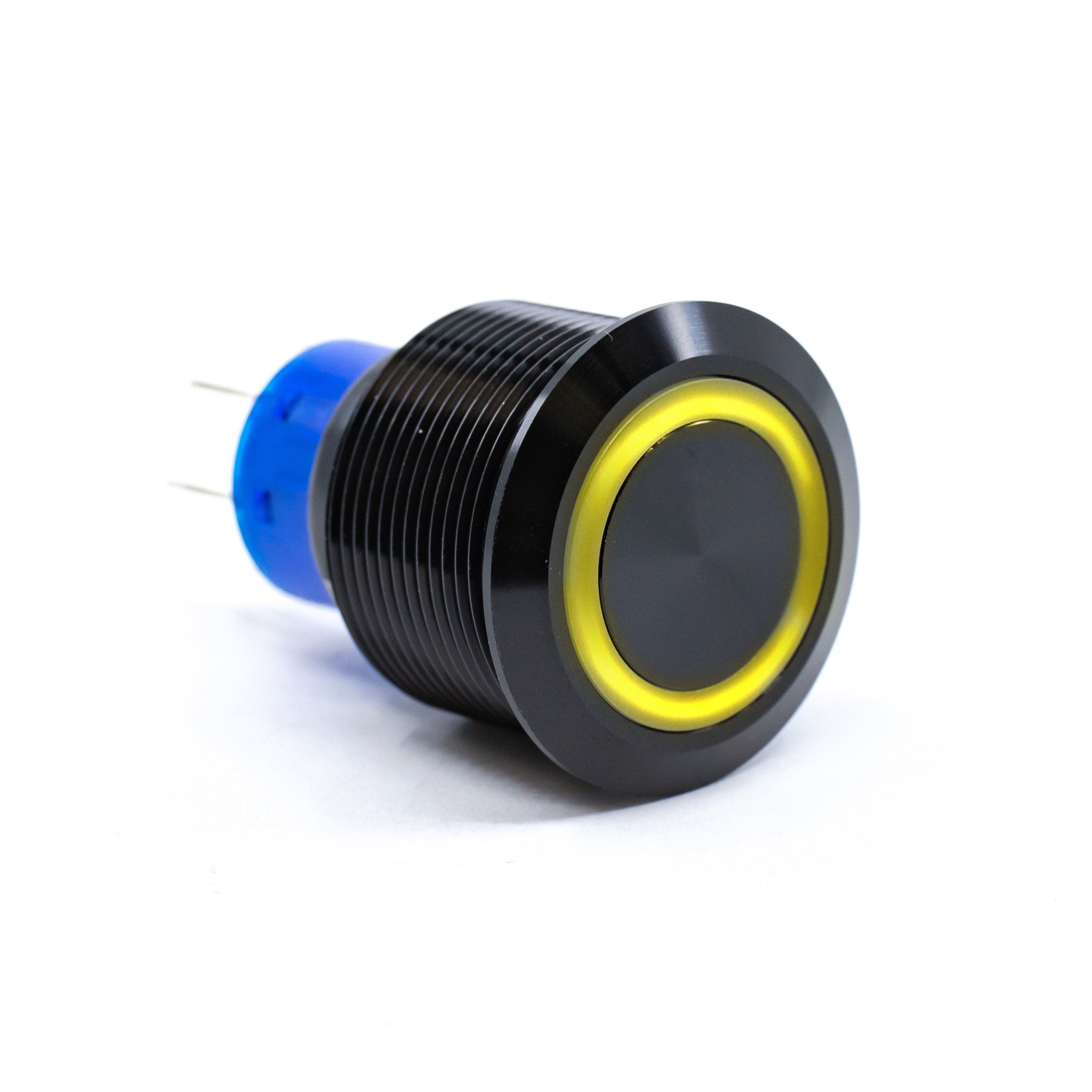

Технічний опис ULV7F2G11354 E-Switch
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; DPDT; 3A/250VAC; IP67; ON-ON; ULV7, Mounting: on panel, IP rating: IP67, Operating temperature: -20...55°C, Manufacturer series: ULV7, Body dimensions: Ø25x29.2mm, Mounting hole diameter: Ø22mm, Leads: connectors 2,8x0,5mm, Electrical life: 50000 cycles, Type of switch: vandal resistant, Contacts configuration: DPDT, AC contacts rating @R: 3A / 250V AC, Switching method: ON-ON, Stable positions number: 2, Operating Force: 3.5N, Illumination: LED; ring, Button marking: blank, Actuator colour: black, Body colour: black, Backlight colour: yellow, Key stroke: 3.2mm, Button height: 2mm, Button shape: flat; round, Number of positions: 2, Contact plating: silver plated, Mechanical durability: 500000 cycles, Panel thickness: 1...10mm, Max. contact resistance:: 50mΩ, Min. insulation resistance: 1GΩ.
Інші пропозиції ULV7F2G11354
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| ULV7F2G11354 | Виробник : E-SWITCH |
 Category: Push Button SwitchesDescription: Switch: vandal resistant; Pos: 2; DPDT; 3A/250VAC; IP67; ON-ON; ULV7 Mounting: on panel IP rating: IP67 Operating temperature: -20...55°C Manufacturer series: ULV7 Body dimensions: Ø25x29.2mm Mounting hole diameter: Ø22mm Leads: connectors 2,8x0,5mm Electrical life: 50000 cycles Type of switch: vandal resistant Contacts configuration: DPDT AC contacts rating @R: 3A / 250V AC Switching method: ON-ON Stable positions number: 2 Operating Force: 3.5N Illumination: LED; ring Button marking: blank Actuator colour: black Body colour: black Backlight colour: yellow Key stroke: 3.2mm Button height: 2mm Button shape: flat; round Number of positions: 2 Contact plating: silver plated Mechanical durability: 500000 cycles Panel thickness: 1...10mm Max. contact resistance:: 50mΩ Min. insulation resistance: 1GΩ |
товару немає в наявності |
