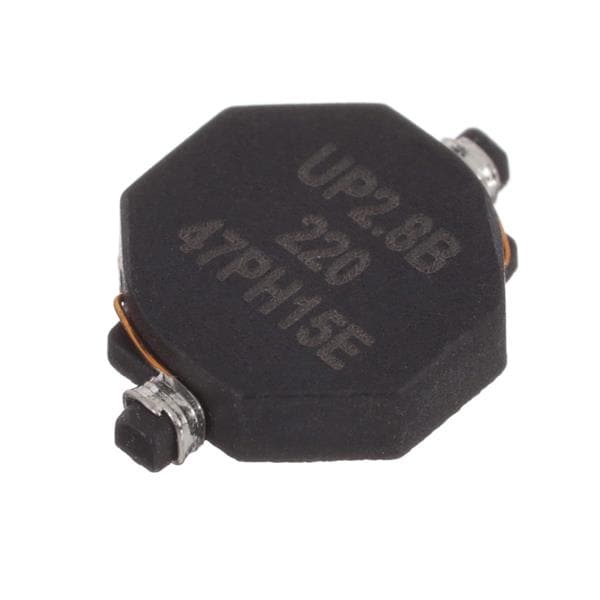

Технічний опис UP2.8B-220-R Coiltronics / Eaton
Description: FIXED IND 22UH 1.5A 190 MOHM SMD, Packaging: Tape & Reel (TR), Tolerance: ±20%, Package / Case: Nonstandard, Size / Dimension: 0.508" L x 0.370" W (12.90mm x 9.40mm), Mounting Type: Surface Mount, Shielding: Unshielded, Type: Drum Core, Wirewound, Operating Temperature: -40°C ~ 85°C, DC Resistance (DCR): 190mOhm Max, Current - Saturation (Isat): 1.7A, Material - Core: Ferrite, Inductance Frequency - Test: 100 kHz, Height - Seated (Max): 0.110" (2.80mm), Inductance: 22 µH, Current Rating (Amps): 1.5 A.
Інші пропозиції UP2.8B-220-R
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| UP2.8B-220-R | Виробник : Eaton - Electronics Division |
 Description: FIXED IND 22UH 1.5A 190 MOHM SMDPackaging: Tape & Reel (TR) Tolerance: ±20% Package / Case: Nonstandard Size / Dimension: 0.508" L x 0.370" W (12.90mm x 9.40mm) Mounting Type: Surface Mount Shielding: Unshielded Type: Drum Core, Wirewound Operating Temperature: -40°C ~ 85°C DC Resistance (DCR): 190mOhm Max Current - Saturation (Isat): 1.7A Material - Core: Ferrite Inductance Frequency - Test: 100 kHz Height - Seated (Max): 0.110" (2.80mm) Inductance: 22 µH Current Rating (Amps): 1.5 A |
товару немає в наявності |
