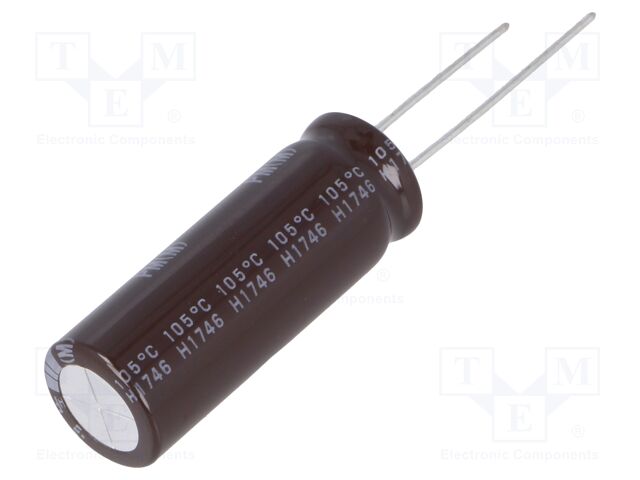

UPM0J472MHD NICHICON
Виробник: NICHICON
Category: THT electrolytic capacitors
Description: Capacitor: electrolytic; low ESR; THT; 4700uF; 6.3VDC; Pitch: 5mm
Type of capacitor: electrolytic
Mounting: THT
Capacitance: 4.7mF
Operating voltage: 6.3V DC
Body dimensions: Ø12.5x35.5mm
Terminal pitch: 5mm
Tolerance: ±20%
Service life: 5000h
Operating temperature: -55...105°C
Manufacturer series: UPM
Operating current: 2A
Height: 35.5mm
Diameter: 12.5mm
Impedance: 28mΩ
Capacitor application: switching power supplies
Capacitors features: high reliability; small sized body
Kind of capacitor: low ESR
Відгуки про товар
Написати відгук
Технічний опис UPM0J472MHD NICHICON
Description: CAP ALUM 4700UF 20% 6.3V RADIAL, Ripple Current @ High Frequency: 2.23 A @ 10 kHz, Ripple Current @ Low Frequency: 2 A @ 120 Hz, Impedance: 28 mOhms, Voltage - Rated: 6.3 V, Capacitance: 4700 µF, Part Status: Not For New Designs, Height - Seated (Max): 1.476" (37.50mm), Lifetime @ Temp.: 5000 Hrs @ 105°C, Ratings: AEC-Q200, Lead Spacing: 0.197" (5.00mm), Applications: Automotive, Operating Temperature: -55°C ~ 105°C, Mounting Type: Through Hole, Polarization: Polar, Size / Dimension: 0.492" Dia (12.50mm), Package / Case: Radial, Can, Tolerance: ±20%, Packaging: Bulk.
Інші пропозиції UPM0J472MHD за ціною від 54.32 грн до 130.18 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UPM0J472MHD | Nichicon |
Description: CAP ALUM 4700UF 20% 6.3V RADIAL Ripple Current @ High Frequency: 2.23 A @ 10 kHz Ripple Current @ Low Frequency: 2 A @ 120 Hz Impedance: 28 mOhms Voltage - Rated: 6.3 V Capacitance: 4700 µF Part Status: Not For New Designs Height - Seated (Max): 1.476" (37.50mm) Lifetime @ Temp.: 5000 Hrs @ 105°C Ratings: AEC-Q200 Lead Spacing: 0.197" (5.00mm) Applications: Automotive Operating Temperature: -55°C ~ 105°C Mounting Type: Through Hole Polarization: Polar Size / Dimension: 0.492" Dia (12.50mm) Package / Case: Radial, Can Tolerance: ±20% Packaging: Bulk |
на замовлення 475 шт: термін постачання 21-31 дні (днів) |
|
||||||||
 |
UPM0J472MHD | Nichicon |
Aluminium Electrolytic Capacitors - Radial Leaded 6.3volts 4700uF AEC-Q200 |
на замовлення 196 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| UPM0J472MHD |
|
Виробник: Nichicon
Description: CAP ALUM 4700UF 20% 6.3V RADIAL
Ripple Current @ High Frequency: 2.23 A @ 10 kHz
Ripple Current @ Low Frequency: 2 A @ 120 Hz
Impedance: 28 mOhms
Voltage - Rated: 6.3 V
Capacitance: 4700 µF
Part Status: Not For New Designs
Height - Seated (Max): 1.476" (37.50mm)
Lifetime @ Temp.: 5000 Hrs @ 105°C
Ratings: AEC-Q200
Lead Spacing: 0.197" (5.00mm)
Applications: Automotive
Operating Temperature: -55°C ~ 105°C
Mounting Type: Through Hole
Polarization: Polar
Size / Dimension: 0.492" Dia (12.50mm)
Package / Case: Radial, Can
Tolerance: ±20%
Packaging: Bulk
Description: CAP ALUM 4700UF 20% 6.3V RADIAL
Ripple Current @ High Frequency: 2.23 A @ 10 kHz
Ripple Current @ Low Frequency: 2 A @ 120 Hz
Impedance: 28 mOhms
Voltage - Rated: 6.3 V
Capacitance: 4700 µF
Part Status: Not For New Designs
Height - Seated (Max): 1.476" (37.50mm)
Lifetime @ Temp.: 5000 Hrs @ 105°C
Ratings: AEC-Q200
Lead Spacing: 0.197" (5.00mm)
Applications: Automotive
Operating Temperature: -55°C ~ 105°C
Mounting Type: Through Hole
Polarization: Polar
Size / Dimension: 0.492" Dia (12.50mm)
Package / Case: Radial, Can
Tolerance: ±20%
Packaging: Bulk
на замовлення 475 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 3+ | 130.18 грн |
| 10+ | 81.78 грн |
| 50+ | 63.61 грн |
| 100+ | 54.32 грн |
| UPM0J472MHD |
|
Виробник: Nichicon
Aluminium Electrolytic Capacitors - Radial Leaded 6.3volts 4700uF AEC-Q200
Aluminium Electrolytic Capacitors - Radial Leaded 6.3volts 4700uF AEC-Q200
на замовлення 196 шт:
термін постачання 21-30 дні (днів)
