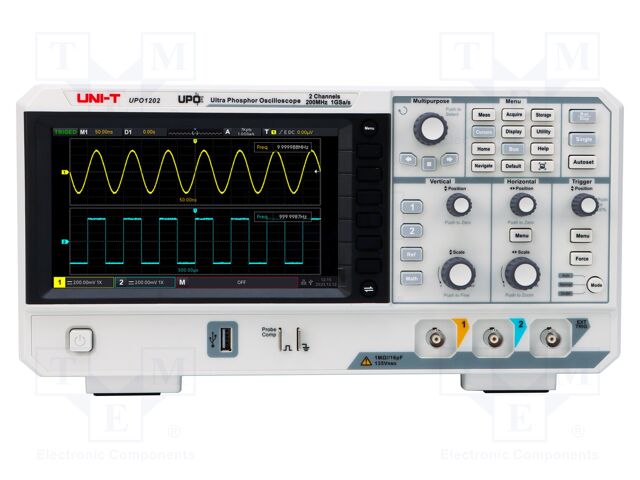

UPO1202 UNI-T
Виробник: UNI-T
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 2; 200MHz; 1Gsps; 56Mpts; LCD TFT 7"
Interface: AUX; EXT Trig; LAN; USB device; USB Host
Kind of display used: LCD TFT 7"
Dimensions: 336x164x105mm
Standard equipment: mains cable; test probes; USB cable
Measuring instrument features: automatic measurement of many parameters; mathematical functions: addition, subtraction, division, multiplication and FFT; split screen function
Supply voltage: 100...240V AC
Related items: UT-P20; UT-P21; UT-P30; UT-P31; UT-P32; UT-P33; UT-P40; UT-P41; UT-P42; UT-P43; UT-P04; UT-P05; UT-V23
Type of oscilloscope: digital
Rise time: ≤1.8ns
Time base: 1n...1ks/div
Input sensitivity: 500µV/div...20V/div
Number of channels: 2
Vertical resolution: 8bit
Display resolution: 800x480
Memory record length: 56Mpts
Input impedance: 1MΩ/16pF
Band: 200MHz
Sampling: 1Gsps
Input coupling: AC, DC, GND
Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; slope; timeout; video signal; window; with delay
Відгуки про товар
Написати відгук
Технічний опис UPO1202 UNI-T
Category: Digital Oscilloscopes, Description: Oscilloscope: digital; Ch: 2; 200MHz; 1Gsps; 56Mpts; LCD TFT 7", Interface: AUX; EXT Trig; LAN; USB device; USB Host, Kind of display used: LCD TFT 7", Dimensions: 336x164x105mm, Standard equipment: mains cable; test probes; USB cable, Measuring instrument features: automatic measurement of many parameters; mathematical functions: addition, subtraction, division, multiplication and FFT; split screen function, Supply voltage: 100...240V AC, Related items: UT-P20; UT-P21; UT-P30; UT-P31; UT-P32; UT-P33; UT-P40; UT-P41; UT-P42; UT-P43; UT-P04; UT-P05; UT-V23, Type of oscilloscope: digital, Rise time: ≤1.8ns, Time base: 1n...1ks/div, Input sensitivity: 500µV/div...20V/div, Number of channels: 2, Vertical resolution: 8bit, Display resolution: 800x480, Memory record length: 56Mpts, Input impedance: 1MΩ/16pF, Band: 200MHz, Sampling: 1Gsps, Input coupling: AC, DC, GND, Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; slope; timeout; video signal; window; with delay.
Інші пропозиції UPO1202 за ціною від 28326.52 грн до 28326.52 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||
|---|---|---|---|---|---|---|---|
 |
UPO1202 | UNI-TREND TECHNOLOGY EU GmbH |
Description: 200MHz 1GSa/s 56Mpts 2 Ch Packaging: Retail Package Display Type: LCD - Color Memory Size: 56Mpts Interface: LAN, USB Voltage - Supply: 100 ~ 240VAC Sampling Rate (Per Second): 1G Voltage - Input (Max): 400V Channels: 2 Analog Input Impedance: 1M - 16pF Bandwidth: 200 MHz Rise Time (Typ): 1.8 ns |
на замовлення 10 шт: термін постачання 21-31 дні (днів) |
|
| UPO1202 |
|
Виробник: UNI-TREND TECHNOLOGY EU GmbH
Description: 200MHz 1GSa/s 56Mpts 2 Ch
Packaging: Retail Package
Display Type: LCD - Color
Memory Size: 56Mpts
Interface: LAN, USB
Voltage - Supply: 100 ~ 240VAC
Sampling Rate (Per Second): 1G
Voltage - Input (Max): 400V
Channels: 2 Analog
Input Impedance: 1M - 16pF
Bandwidth: 200 MHz
Rise Time (Typ): 1.8 ns
Description: 200MHz 1GSa/s 56Mpts 2 Ch
Packaging: Retail Package
Display Type: LCD - Color
Memory Size: 56Mpts
Interface: LAN, USB
Voltage - Supply: 100 ~ 240VAC
Sampling Rate (Per Second): 1G
Voltage - Input (Max): 400V
Channels: 2 Analog
Input Impedance: 1M - 16pF
Bandwidth: 200 MHz
Rise Time (Typ): 1.8 ns
на замовлення 10 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 28326.52 грн |
