UT202R

Виробник: UNI-T
Category: Meters and AC Clamp Probes
Description: Meter: multifunction; digital,pincers type; LCD; (4000); VDC: 600V
Type of meter: multifunction
Kind of meter: digital; pincers type
Measuring instrument features: automatic power-off; autoranging; contactless voltage detector; HOLD function; low battery indicator; MIN/MAX/REL function
Kind of display used: LCD
Display parameters: (4000)
Max. diameter of measured cable: 28mm
AC current measuring range: 400A
AC current measuring accuracy: ±(4% + 10 digit)
DC voltage measuring range: 600V
DC voltage measuring accuracy: ±(0.7% + 3 digit)
AC voltage measuring range: 600V
AC voltage measuring accuracy: ±(1% + 5 digit)
True effective value measurement: True RMS
Resistance measuring range: 40MΩ
Capacitance measuring range: 4mF
Capacitance measuring accuracy: ±(4%+ 5 digit)
Temperature measuring accuracy (measurement with probe): ±(1.5% + 5°C)
Test: diodes
Continuity test: acoustic indication; <10Ω
Dimensions: 215x63x36mm
Weight with battery: 248g
Power supply: battery R03 AAA 1,5V x2
Measurement: AC current; AC voltage; capacitance; continuity; DC voltage; resistance; temperature
Conform to the norm: CAT II 600V; CAT III 300V; EN 61010

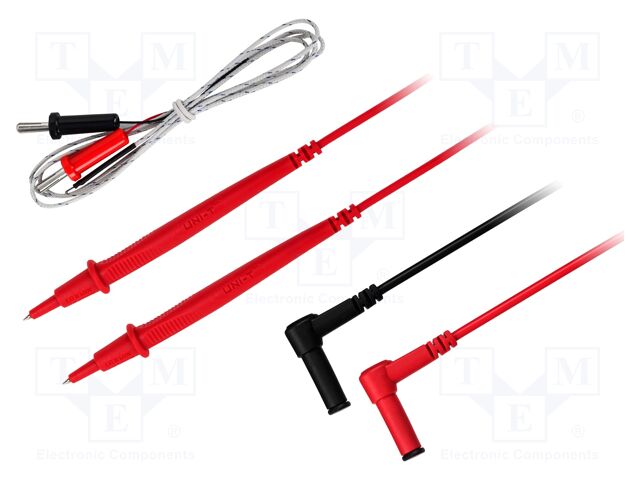

Standard equipment: case; temperature probe; test leads
Battery/ rechargeable battery: battery R03 AAA 1,5V x2
Temperature measuring range measured by probe: -40...1000°C
Resistance measuring accuracy: ±(1%+2 digit)
