UT208B (Струмовимірювальні кліщі) Uni-Trend (Uni-T)

Виробник: UNI-T
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,AC/DC pincers type; Øcable: 42mm
Type of meter: multifunction
Kind of meter: AC/DC pincers type; digital
Max. diameter of measured cable: 42mm
Kind of display used: LCD
Display parameters: (6000)
AC current measuring range: 60A; 600A; 1kA
Measuring instrument features: automatic power-off; contactless voltage detector; HOLD function; low battery indicator; MIN/MAX function; overflow indication; REL function
AC current measuring accuracy: ±(2% + 5 digit)
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.5% + 5 digit)
AC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(1.2% + 3 digit)
Resistance measuring accuracy: ±(1%+2 digit)
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF
Frequency measuring range: 10Hz...1MHz
Temperature measuring range: -40...1000°C
Continuity test: acoustic indication; <600Ω
Test: circuit continuity; diodes
Pollution degree: 2
Dimensions: 272x81x43.5mm
Weight with battery: 447g
Power supply: battery R03 AAA 1,5V x3

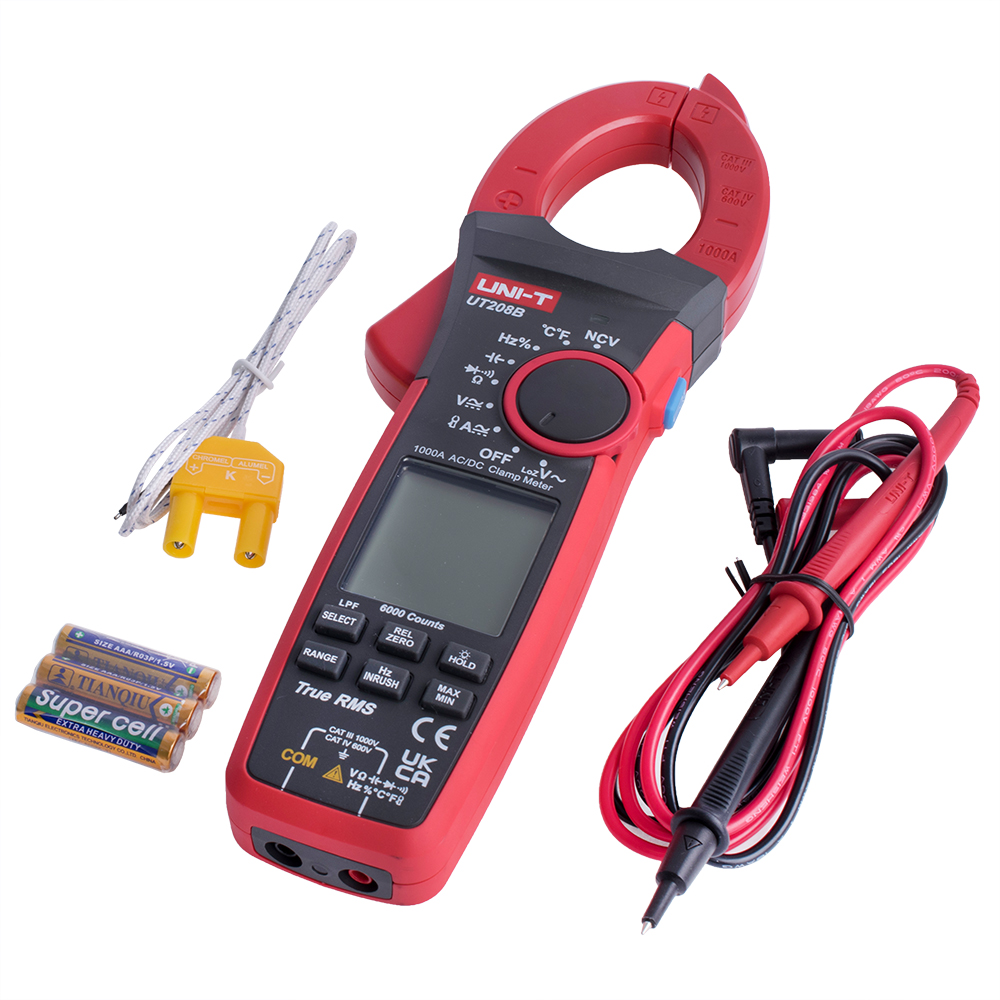

Standard equipment: temperature probe; test leads; user's manual
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Conform to the norm: CAT III 1000V; CAT IV 600V
Battery/ rechargeable battery: battery R03 AAA 1,5V x3
Illumination: yes
Additional functions: torch
