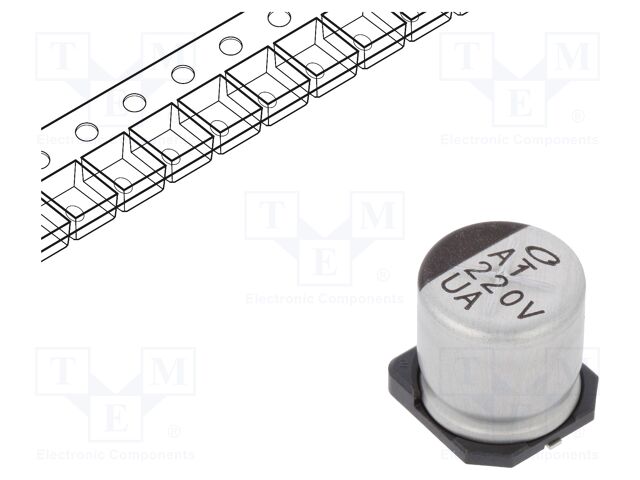

UUA1V221MNL1GS Nichicon
Виробник: Nichicon
Description: CAP ALUM 220UF 20% 35V SMD
Ripple Current @ High Frequency: 562.5 mA @ 10 kHz
Ripple Current @ Low Frequency: 375 mA @ 120 Hz
Voltage - Rated: 35 V
Capacitance: 220 µF
Height - Seated (Max): 0.413" (10.50mm)
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Lifetime @ Temp.: 5000 Hrs @ 105°C
Ratings: AEC-Q200
Applications: General Purpose
Operating Temperature: -55°C ~ 105°C
Mounting Type: Surface Mount
Polarization: Polar
Size / Dimension: 0.394" Dia (10.00mm)
Package / Case: Radial, Can - SMD
Tolerance: ±20%
Packaging: Tape & Reel (TR)
Відгуки про товар
Написати відгук
Технічний опис UUA1V221MNL1GS Nichicon
Description: CAP ALUM 220UF 20% 35V SMD, Ripple Current @ High Frequency: 562.5 mA @ 10 kHz, Ripple Current @ Low Frequency: 375 mA @ 120 Hz, Voltage - Rated: 35 V, Capacitance: 220 µF, Height - Seated (Max): 0.413" (10.50mm), Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm), Lifetime @ Temp.: 5000 Hrs @ 105°C, Ratings: AEC-Q200, Applications: General Purpose, Operating Temperature: -55°C ~ 105°C, Mounting Type: Surface Mount, Polarization: Polar, Size / Dimension: 0.394" Dia (10.00mm), Package / Case: Radial, Can - SMD, Tolerance: ±20%, Packaging: Tape & Reel (TR).
Інші пропозиції UUA1V221MNL1GS за ціною від 20.10 грн до 64.95 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UUA1V221MNL1GS | NICHICON |
Category: SMD electrolytic capacitors Description: Capacitor: electrolytic; SMD; 220uF; 35VDC; Ø10x10mm; ±20%; 5000h Type of capacitor: electrolytic Mounting: SMD Capacitance: 220µF Operating voltage: 35V DC Body dimensions: Ø10x10mm Tolerance: ±20% Operating temperature: -55...105°C Height: 10mm Diameter: 10mm Manufacturer series: UUA Service life: 5000h Operating current: 375mA |
на замовлення 1290 шт: термін постачання 14-30 дні (днів) |
|
||||||||||
|
|
UUA1V221MNL1GS | Nichicon |
Description: CAP ALUM 220UF 20% 35V SMD Ripple Current @ High Frequency: 562.5 mA @ 10 kHz Ripple Current @ Low Frequency: 375 mA @ 120 Hz Voltage - Rated: 35 V Capacitance: 220 µF Height - Seated (Max): 0.413" (10.50mm) Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm) Lifetime @ Temp.: 5000 Hrs @ 105°C Ratings: AEC-Q200 Applications: General Purpose Operating Temperature: -55°C ~ 105°C Mounting Type: Surface Mount Polarization: Polar Size / Dimension: 0.394" Dia (10.00mm) Package / Case: Radial, Can - SMD Tolerance: ±20% Packaging: Cut Tape (CT) |
на замовлення 831 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
UUA1V221MNL1GS | Nichicon |
Aluminium Electrolytic Capacitors - SMD 35volts 220uF AEC-Q200 |
на замовлення 1504 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| UUA1V221MNL1GS |
|
Виробник: NICHICON
Category: SMD electrolytic capacitors
Description: Capacitor: electrolytic; SMD; 220uF; 35VDC; Ø10x10mm; ±20%; 5000h
Type of capacitor: electrolytic
Mounting: SMD
Capacitance: 220µF
Operating voltage: 35V DC
Body dimensions: Ø10x10mm
Tolerance: ±20%
Operating temperature: -55...105°C
Height: 10mm
Diameter: 10mm
Manufacturer series: UUA
Service life: 5000h
Operating current: 375mA
Category: SMD electrolytic capacitors
Description: Capacitor: electrolytic; SMD; 220uF; 35VDC; Ø10x10mm; ±20%; 5000h
Type of capacitor: electrolytic
Mounting: SMD
Capacitance: 220µF
Operating voltage: 35V DC
Body dimensions: Ø10x10mm
Tolerance: ±20%
Operating temperature: -55...105°C
Height: 10mm
Diameter: 10mm
Manufacturer series: UUA
Service life: 5000h
Operating current: 375mA
на замовлення 1290 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 8+ | 58.80 грн |
| 13+ | 33.84 грн |
| 50+ | 25.89 грн |
| 100+ | 23.41 грн |
| 500+ | 20.10 грн |
| UUA1V221MNL1GS |
|
Виробник: Nichicon
Description: CAP ALUM 220UF 20% 35V SMD
Ripple Current @ High Frequency: 562.5 mA @ 10 kHz
Ripple Current @ Low Frequency: 375 mA @ 120 Hz
Voltage - Rated: 35 V
Capacitance: 220 µF
Height - Seated (Max): 0.413" (10.50mm)
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Lifetime @ Temp.: 5000 Hrs @ 105°C
Ratings: AEC-Q200
Applications: General Purpose
Operating Temperature: -55°C ~ 105°C
Mounting Type: Surface Mount
Polarization: Polar
Size / Dimension: 0.394" Dia (10.00mm)
Package / Case: Radial, Can - SMD
Tolerance: ±20%
Packaging: Cut Tape (CT)
Description: CAP ALUM 220UF 20% 35V SMD
Ripple Current @ High Frequency: 562.5 mA @ 10 kHz
Ripple Current @ Low Frequency: 375 mA @ 120 Hz
Voltage - Rated: 35 V
Capacitance: 220 µF
Height - Seated (Max): 0.413" (10.50mm)
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Lifetime @ Temp.: 5000 Hrs @ 105°C
Ratings: AEC-Q200
Applications: General Purpose
Operating Temperature: -55°C ~ 105°C
Mounting Type: Surface Mount
Polarization: Polar
Size / Dimension: 0.394" Dia (10.00mm)
Package / Case: Radial, Can - SMD
Tolerance: ±20%
Packaging: Cut Tape (CT)
на замовлення 831 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 5+ | 64.95 грн |
| 10+ | 37.90 грн |
| 50+ | 29.83 грн |
| 100+ | 25.16 грн |
| UUA1V221MNL1GS |
|
Виробник: Nichicon
Aluminium Electrolytic Capacitors - SMD 35volts 220uF AEC-Q200
Aluminium Electrolytic Capacitors - SMD 35volts 220uF AEC-Q200
на замовлення 1504 шт:
термін постачання 21-30 дні (днів)
